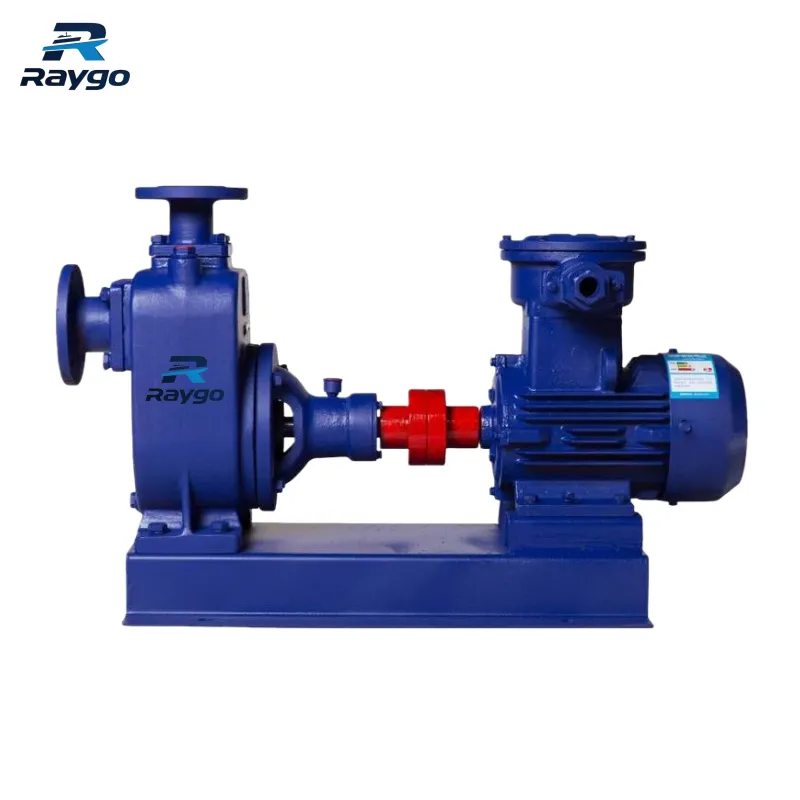

CYZ Series Self-Priming Centrifugal Oil Pump | Marine Fuel Transfer
A self-priming centrifugal pump designed for petroleum products. It handles gasoline, kerosene, and diesel between -20°C and +80°C. Simple construction and high efficiency make it ideal for loading and unloading oil on boats and in land depots.
Accreditation and Certificates:
CYZ Series pumps are engineered for efficiency in oil transport. The pump body consists of a suction room, liquid storage room, vortex room, and a gas-liquid separation chamber. This structure allows it to self-prime effectively. Bearings are single-row radial ball bearings equipped with a cooling chamber at the bottom of the bearing stand. High and low-pressure areas inside are separated by a seal ring, and the shaft end uses a mechanical seal to prevent leakage. It is an excellent choice for loading and unloading oil on boats or transporting fuel in land depots.
Technical Specifications：
| Parameter | Specification |
| Flow Rate | 3 – 400 m³/h |
| Head | 12 – 80 m |
| Speed | 1470 – 2900 r/min |
| Suction Height | 4 – 6 m |
| Inlet / Outlet Size | 25 – 250 mm |
Key Features：
- Self-Priming Structure: Includes gas-liquid separation chamber for reliable priming.
- Wide Application: Suitable for petrol, kerosene, diesel, and seawater.
- Temperature Range: Operates effectively from -20°C to +80°C.
- Durable Sealing: Mechanical seals ensure leak-free operation.
- Simple Maintenance: Easy to operate and repair.
Applications：
- Marine Cargo: Loading and unloading oil on boats.
- Land Depots: Transporting fuel in oil depots and oil trucks.
- General Transfer: Pumping sea water and fresh water.
Installation & Maintenance：
Installation: Mount on a firm base. Connect pipes to suction and discharge ports securely.
Maintenance: Check mechanical seals regularly. Monitor the cooling chamber at the bearing stand bottom.
Custom Options Available：
Various motor power options (0.75 kW to 132 kW) available depending on flow requirements.
FAQ ：
Yes, it can be used to transport sea water and fresh water in addition to oil products.
