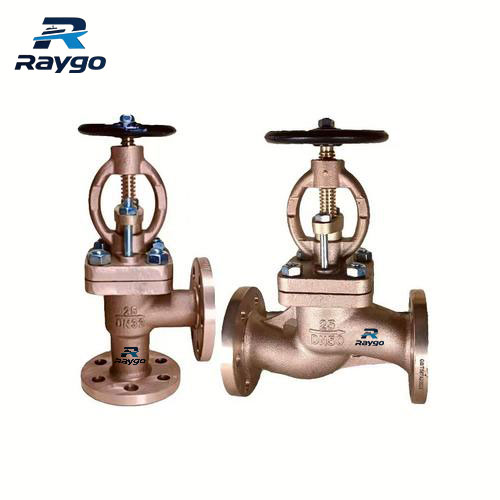

GB/T 587 Bronze Marine Globe Valve | Corrosion Resistant
A premium bronze valve designed specifically for seawater and corrosive environments. It features an aluminum bronze stem and reliable sealing components. Ideal for sea water lines, fresh water, and fuel systems up to 250°C.
Accreditation and Certificates:
The GB/T 587 Marine Globe Valve addresses the challenge of salt corrosion. The body is cast from high-quality bronze. The stem utilizes aluminum bronze for added strength and resistance. This material combination makes it the standard choice for seawater piping systems.
Beyond seawater, it handles fresh water, oil, and steam effectively. The non-metallic sealing materials are selected to withstand temperatures up to 250°C. Whether you need a straight (Type A) or angle (Type B) flow path, this valve delivers long service life with minimal maintenance.

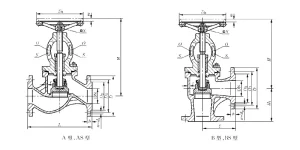

Product Drawings：
Technical Specifications：
| Parameter | Specification |
| Standard | GB/T 587 |
| Nominal Pressure (PN) | 0.6 – 6.4 MPa |
| Nominal Diameter (DN) | 15 – 150 mm |
| Body Material | Bronze |
| Stem Material | Aluminum Bronze |
| Sealing Limit | 250°C |
| Connection | Flange |
| Model | Nominal Pressure (PN) MPa | Nominal Diameter (DN) mm |
| A, B | 1 | 65–150 |
| 1.6 | 125–150 | |
| 2.5 | 20–125 | |
| AS, BS | 0.6 | 15–150 |
| 1.6 | 65–150 | |
| 2.5 | 15–125 |
Key Features：
- Superior Corrosion Resistance: Bronze body resists seawater erosion.
- Durable Stem: Aluminum bronze stem prevents snapping and wear.
- Flexible Operation: Short stroke for quick opening and closing.
- Wide Medium Compatibility: Handles water, oil, and steam.
Applications：
- Seawater Systems: Cooling water lines, ballast systems, and fire mains.
- Fuel & Lube: Transfer lines for diesel and lubricating oil.
- Steam Lines: Low to medium pressure steam heating systems.
Installation & Maintenance：
Installation: Install in the direction of flow indicated on the body. Flange bolts must be uniform.
Maintenance: Check stem packing for tightness. Verify seat sealing surface periodically.
Custom Options Available：
We provide customization services based on international standards such as ANSI, JIS, and DIN, ensuring compatibility with different global market requirements.
FAQ ：
Q1: Why use bronze instead of steel?
A1: Bronze does not rust or corrode in seawater like steel does, ensuring a much longer lifespan in marine environments.
