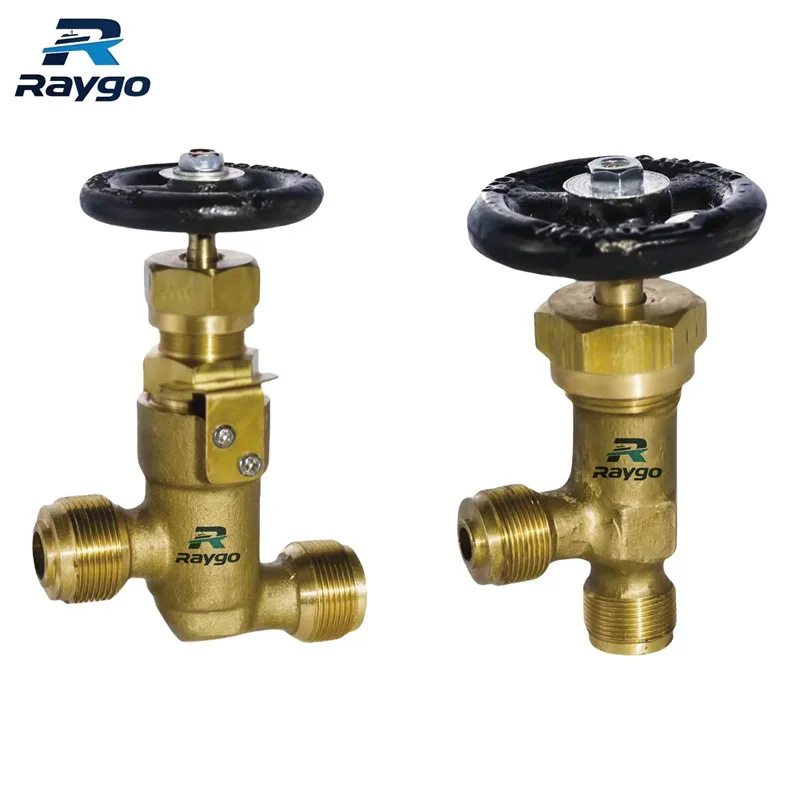

GB/T 595 High-Pressure Marine Globe Valve | Up to 100 MPa
Accreditation and Certificates:
The GB/T 595 valve is engineered for extreme conditions. It serves systems requiring immense pressure control, such as high-pressure air compressors or hydraulic lines. The nominal pressure ratings hit 40 MPa and 100 MPa.
To withstand these forces while resisting corrosion, the body is cast from Aluminum Bronze. The connection style changes from flange to a secure screw thread. This prevents leaks at high pressure. It handles air, water, and fuel efficiently. The compact design (DN 6-32) allows installation in tight machinery spaces.

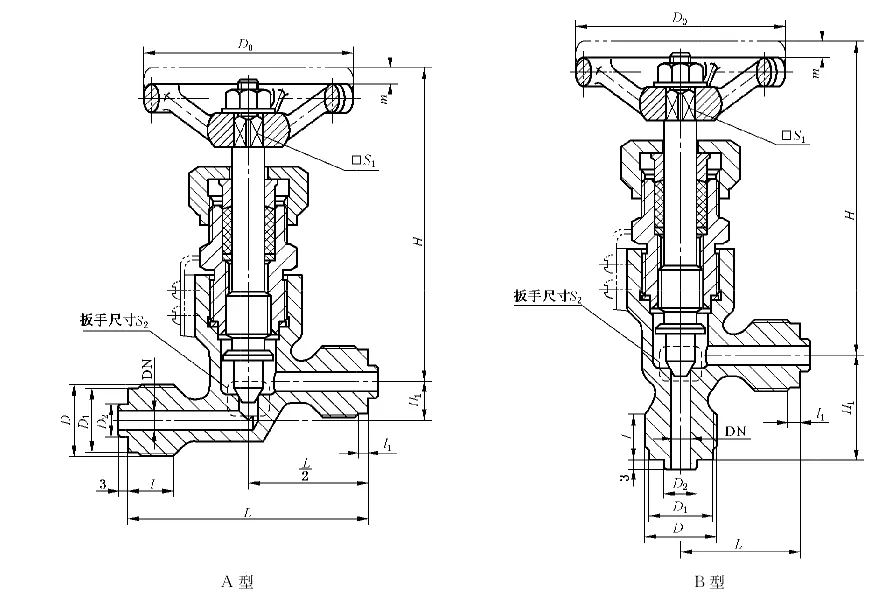

Product Drawings：
Technical Specifications：
| Parameter | Specification |
| Standard | GB/T 595 |
| Nominal Pressure (PN) | 40 MPa, 100 MPa |
| Nominal Diameter (DN) | 6 – 32 mm |
| Body Material | Aluminum Bronze |
| Stem Material | Aluminum Bronze |
| Connection | Thread / Screw |
| Max Temperature | 250°C |
| Model | Nominal Pressure (PN) MPa | Nominal Diameter (DN) mm | Applicable Media |
| A, B | 4 | 15–32 | Seawater, fresh water, fuel oil, lubricating oil, air, and steam with temperature not exceeding 250 °C |
| 10 | 6–32 | Seawater, fresh water, fuel oil, lubricating oil, air |
Key Features：
- Extreme Pressure Handling: Rated for 40 MPa and 100 MPa.
- Robust Material: Aluminum Bronze body and stem for strength.
- Secure Connection: Threaded ends prevent blowout.
- Compact Size: Designed for small diameter high-pressure lines.
Applications：
- High-Pressure Air: Air bottle systems and compressor lines.
- Hydraulics: Control lines for steering and deck machinery.
- Fuel Injection: High-pressure fuel supply lines.
Installation & Maintenance：
Installation: Use high-grade sealants on threads. Ensure precise alignment to prevent thread damage.
Maintenance: Inspect threads for fatigue. Check operation regularly for sticking.
Custom Options Available：
We provide customization services based on international standards such as ANSI, JIS, and DIN, ensuring compatibility with different global market requirements.
FAQ ：
Q1: What is the main difference between GB/T 595 and 587?
A1: Pressure. GB/T 595 is for extremely high pressure (up to 100 MPa) and uses screw connections, while 587 is for medium pressure using flanges.
