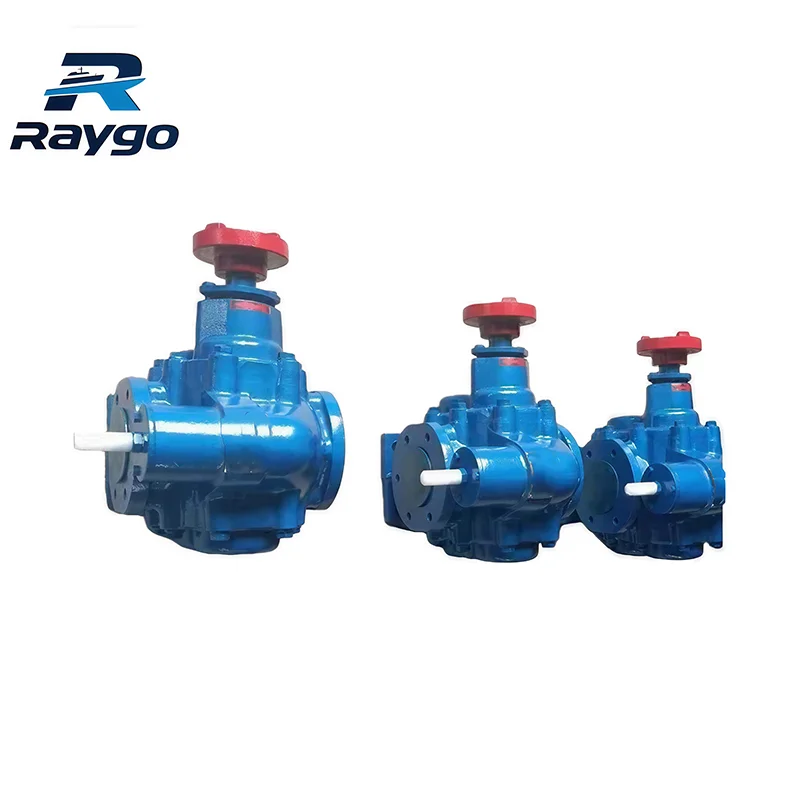

KCB Series Marine Gear Pump | General Purpose Oil Transfer
The industry standard for transferring lubricating fluids. KCB pumps handle oil, diesel, and non-corrosive liquids without solid particles. It features an integrated safety valve for overload protection.
Accreditation and Certificates:
Overview
KCB Series Gear Pumps utilize external gear meshing to pump fluid. As the gears rotate, they create suction at the inlet and pressure at the outlet. This design is perfect for lubricating oils or heavy fuels with a viscosity of 5-1500 cSt. The pump is properly designed with leakage and return chutes to minimize torque and reduce bearing wear. An integrated safety valve protects the pump from overpressure, set at 1.5 times the rated exhaust pressure.
Technical Specifications：
| Parameter | Specification |
| Flow Rate | 1.1 -576 m³/h (18.3 -9600 L/min) |
| Discharge Pressure | 0.28-1.45 MPa |
| Viscosity Range | 5-1500 cSt |
| Max Temperature | 300°C |
Key Features：
- Integrated Safety Valve: Automatically relieves pressure (1.5x Rated Pressure) to prevent overload.
- Heat-Treated Gears: Gears possess high hardness and intensity for durability.
- Lubricated Internals: All parts are lubricated automatically by the delivered medium.
- Versatile: Handles various viscosities (5-1500 cSt) and temperatures up to 300°C.
Applications：
- Oil Transfer: Moving lube oil between tanks.
- Fuel Delivery: Booster pump for fuel supply, pressurization, and injection.
- Lubrication: Providing pressure for industrial lubrication systems.
Installation & Maintenance：
Installation: Mount on a solid base. Ensure the rotation direction is clockwise from the coupling end.
Maintenance: The safety valve cannot be used as a pressure-reducing valve for long periods; install a separate valve if needed.
Custom Options Available：
Magnetic force drive and zero-leakage structures are available upon request.
