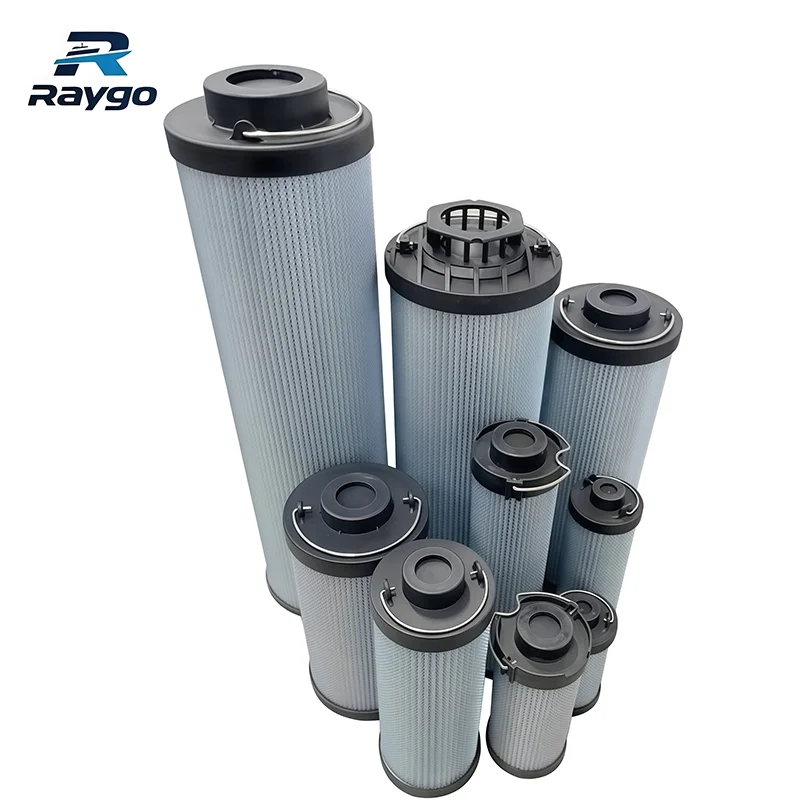

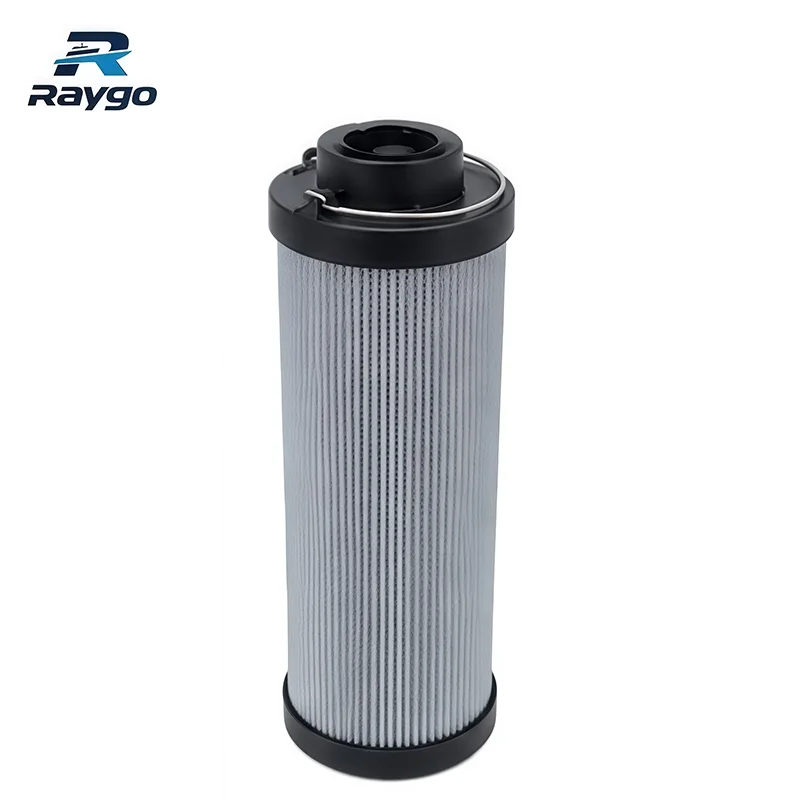

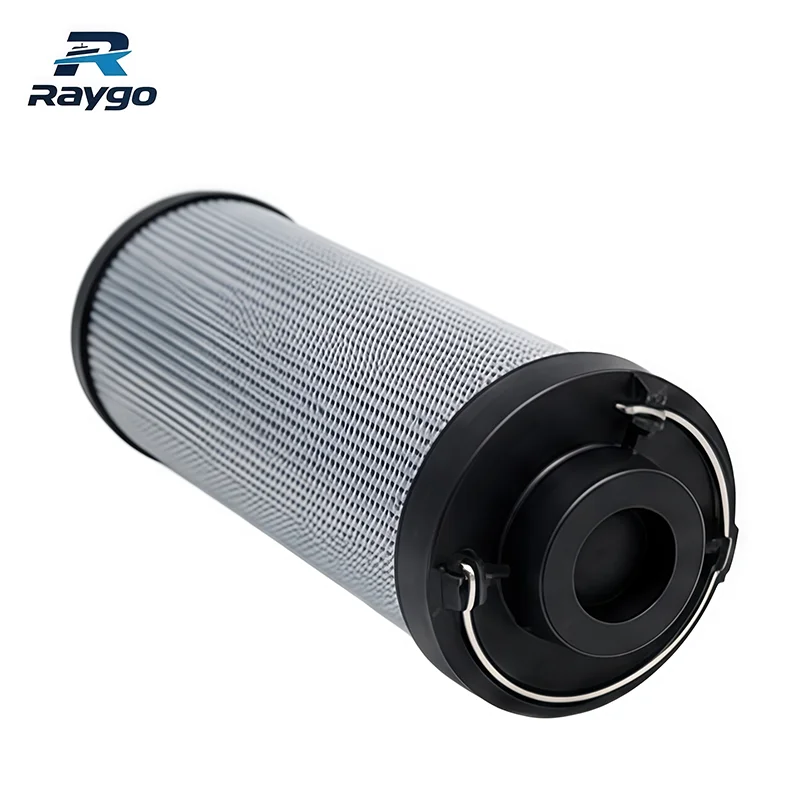

Marine Pleated Hydraulic Oil Filter Element for Hydraulic Systems

A marine pleated hydraulic oil filter element is a replacement filter designed specifically for hydraulic oil filtration. Compared with general oil filters, hydraulic oil filters usually require stricter attention to filtration accuracy, pressure resistance and differential pressure performance.
The pleated structure increases filtration area within limited installation space. This helps the filter hold more contaminants while maintaining suitable flow capacity. For shipboard hydraulic systems, this structure is useful because hydraulic equipment often needs stable oil flow and reliable contamination control.
This product is suitable for hydraulic oil return lines, pressure lines or suction lines depending on the system design and filter specification. The final selection should follow the hydraulic system requirement and original filter housing structure.

Technical Specifications：

The final specification of a marine swivel fairlead should be selected according to rope diameter, working load, rope type, deck layout and installation method. Raygo Marine can provide customized designs based on drawings or project requirements.

Key Features：

• Marine pleated hydraulic oil filter elements are designed for hydraulic systems where oil cleanliness, pressure resistance and stable flow are important. The pleated structure provides larger filtration area, which helps improve dirt-holding capacity within limited space.
• This filter helps protect hydraulic pumps, valves and actuators from contamination-related wear or malfunction. It is suitable for marine hydraulic equipment that requires reliable oil filtration during continuous operation.
• For replacement projects, the filter should be checked by filtration rating, flow rate, pressure rating, differential pressure, size and sealing type, not only by appearance.

Working Principle：

During hydraulic system operation, hydraulic oil passes through the pleated filter media. Solid particles, metal debris and contamination are captured by the filter layer. Cleaner hydraulic oil then continues to pumps, valves, actuators or other hydraulic components.
As the filter collects contaminants, differential pressure gradually increases. If the filter becomes clogged and the pressure drop exceeds the acceptable range, oil flow may be affected. Therefore, differential pressure monitoring is important for hydraulic oil filter maintenance.
A properly selected hydraulic oil filter element should provide effective particle removal while maintaining required oil flow and pressure stability.

Product Structure and Material Features：

The main structural feature of this product is pleated filter media. The pleated design provides larger filtration surface and higher dirt-holding capacity compared with a flat filter layer of the same installation size.
Hydraulic oil filter elements may include filter media, inner support tube, outer protection layer, end caps and sealing components. These parts should be selected according to pressure level, flow direction, oil type and installation interface.
For marine hydraulic systems, material compatibility with hydraulic oil, pressure resistance, temperature resistance and sealing reliability should be checked carefully.

Applications：

• Marine Hydraulic System: Filters contaminants from hydraulic oil.
• Hydraulic Pump Protection: Reduces particle wear on pumps.
• Hydraulic Valve Group: Helps protect precision valve components.
• Deck Machinery Hydraulic Units: Supports stable operation of deck machinery.
• Steering or Auxiliary Hydraulic Equipment : Maintains hydraulic oil cleanliness.

Selection Guide：

When selecting a marine pleated hydraulic oil filter element, customers should first confirm the hydraulic oil type and system position. Pressure line filters, return line filters and suction filters may have different requirements for pressure resistance and filtration accuracy.
The filtration rating should be selected according to the cleanliness requirement of the hydraulic system. A filter that is too coarse may not protect precision hydraulic components. A filter that is too fine may clog quickly under poor oil conditions.
For replacement, customers should confirm outer diameter, inner diameter, length, end cap type, sealing method, pressure rating and differential pressure requirement.

Replacement and Compatibility：

Raygo Marine can help match marine pleated hydraulic oil filter elements according to the original part number, hydraulic system model, old filter photo, drawing, sample or dimensions.
Useful information includes hydraulic oil type, filtration rating, outer diameter, inner diameter, length, end cap structure, sealing type, working pressure, differential pressure, temperature and quantity.

Maintenance Tips：

Hydraulic oil filter elements should be checked when system pressure changes, differential pressure rises or hydraulic equipment response becomes unstable. Replacement intervals should follow the equipment manual and actual oil condition.
If the filter is clogged, damaged or deformed, it should be replaced in time. Continued use of a failed filter may increase the risk of pump wear, valve blockage or unstable hydraulic operation.

FAQ ：

Q: Can this filter be used for all hydraulic systems?

A: No. It should be selected according to hydraulic oil type, flow rate, pressure, filtration rating and original filter housing.

Q: Is a hydraulic oil filter the same as a general oil filter?

A: Not always. Hydraulic oil filters usually require closer attention to pressure resistance, differential pressure and cleanliness control.

Q: What information is needed for replacement?

A: Filter size, hydraulic oil type, filtration rating, pressure rating, sealing type and old filter photos are helpful.
