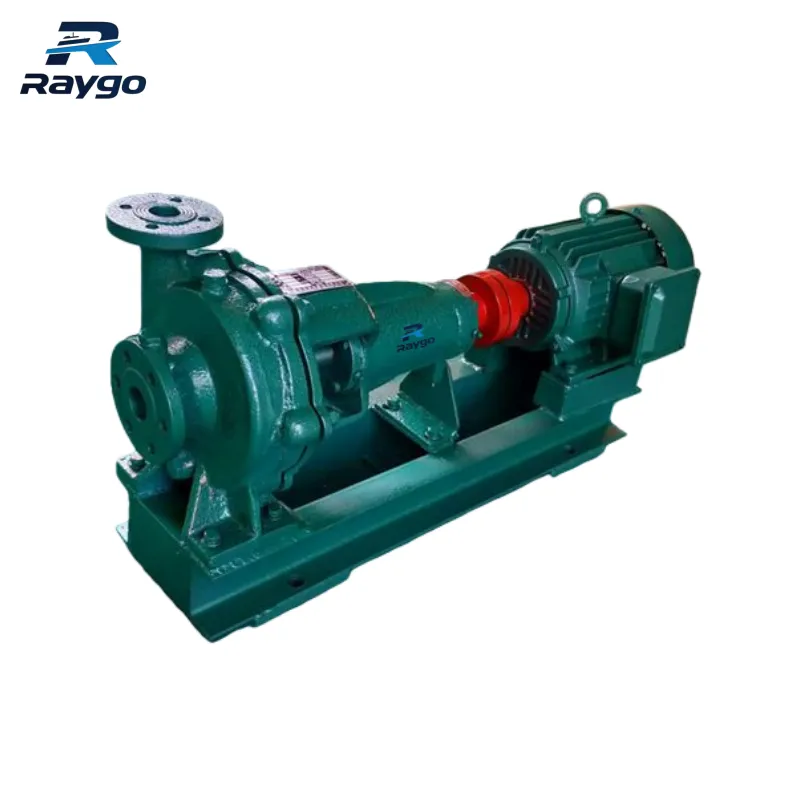

BZA Chemical Process Pump | API 610 & VDMA 24297
A heavy-duty process pump designed according to API 610 and VDMA 24297 norms. It transports clean, polluted, corrosive, and extreme temperature liquids (-80°C to +350°C). Features a back-pull-out structure for easy maintenance.
Accreditation and Certificates:
The BZA type pump is a horizontal, radially split, single-stage centrifugal pump. It features a back-pull-out structure, meaning you do not need to dismantle the pipeline for repairs. It is designed to pump neutral or corrosive liquids, as well as liquids containing light particles. The casing is foot-supported and includes front and back sealing rings for hydraulic balance. The shaft seal can be packing or mechanical, equipped with cooling or washing systems.
Technical Specifications：
| Parameter | Specification |
| Sizes | 25 – 400 mm |
| Capacity (Q) | Up to 2600 m³/h |
| Head (H) | Up to 300 m |
| Pressure (P) | Up to 2.5 MPa |
| Temperature (T) | -80°C to + 350℃ |
Key Features：
- Standard Compliance: Designed to API 610 and VDMA 24297.
- Wide Temperature Range: Handles -80°C to + 350°C.
- Maintenance Friendly: Back-pull-out structure allows easy access.
- Flexible Sealing: Accommodates packing or mechanical seals.
- Material Variety: Available in carbon steel, stainless steel, and wear-resisting steel.
Applications：
- Refineries & Petrochemicals: Oil refining and chemical processing.
- Ship & Offshore: Marine industrial applications.
- Desalination: Seawater desalination factories.
- Power Stations: Power plant fluid handling.
Installation & Maintenance：
Installation: Supported by feet with axial suction and radial discharge. Connection uses a prolonged coupling.
Maintenance: The back-opening structure means you do not need to dismantle pipelines for examination.
Custom Options Available：
Materials include Carbon Steel, Stainless Steel (304, 316L, 904L), and heat-resisting steel. Cooling jackets for seals are available.
FAQ ：
Can this pump handle solids?
Yes, it is suitable for clean or slightly polluted liquid containing light particles.
