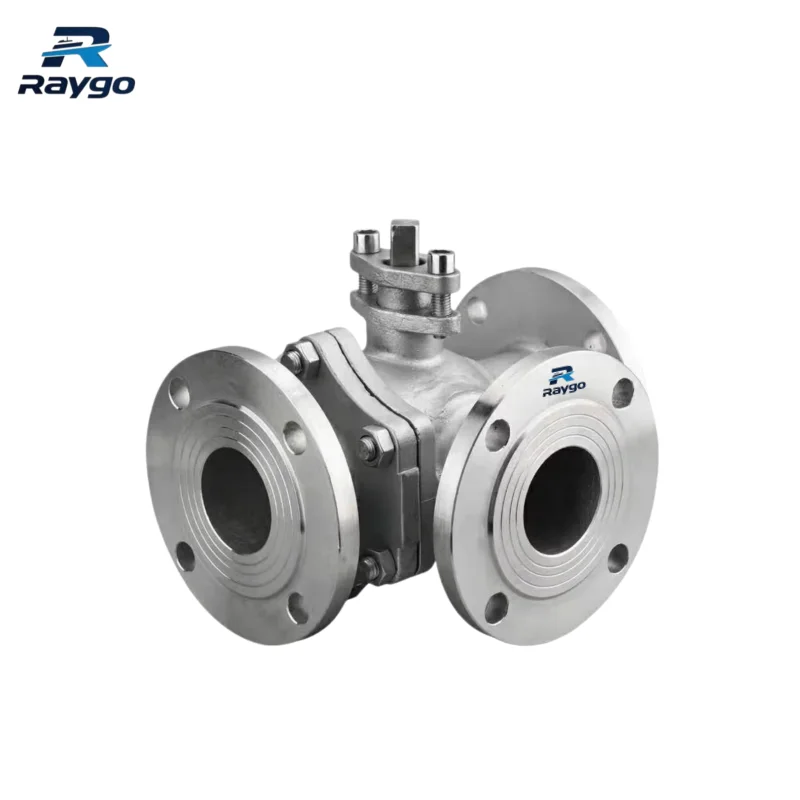

Marine 3 Way Ball Valve | Multi Channel Flow Direction Switch Control
A control valve possessing three independent fluid channels.
Built specifically to regulate flow or switch media flow directions.
The flow path remains highly unobstructed with extremely low fluid resistance.
Accreditation and Certificates:
Complex marine pipelines require highly flexible diverting equipment. Three way ball valves feature three channels to meet this core requirement.
Factories manufacture both T type and L type flow path configurations.
Durable cast steel or stainless steel mostly forms the valve body.
A unique three body structure makes on site disassembly and assembly extremely convenient.
Water, steam, liquids, and oil media switch routing paths smoothly within the system.

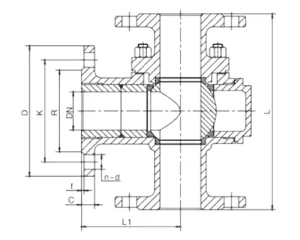

Product Drawings：
Technical Specifications：
| Parameter | Specification |
| Nominal Pressure | 1.6 MPa ~ 6.4 MPa |
| Nominal Diameter | DN15~ DN200 |
| Applicable Media | Water, Steam, Oil, Liquid, Etc. |
| Temperature | -29℃ ~ 150℃ |
| Connection Method | Flange connection |
| Main Material | Cast steel or stainless steel |
Key Features：
- Flow switching: Achieves media flow direction switching or flow regulation control easily.
- Three body structure: Disassembly is highly convenient, facilitating on site repair and part replacement greatly.
- Low resistance channels: Unobstructed internal flow paths reduce pipeline fluid resistance significantly.
- Multi media compatible: Handles various liquids and steam safely up to 150°C.
Applications：
- Oil circuit systems: Achieves reversing control for marine fuel and lubricating oil pipelines.
- General fluid control: Handles diverting and merging of non corrosive media like water, steam, and compressed air.
Installation & Maintenance：
Engineers must check the stem packing seal for leaks regularly.
Aging or damaged seal rings must undergo immediate replacement.
The maintenance personnel must constantly verify the operational health of the execution mechanisms.
Custom Options Available：
Internal flow path centers offer T-type or L-type options, matching all complex piping design layouts accurately. We provide customization services based on international standards such as ANSI, JIS, and DIN, ensuring compatibility with different global market requirements.
FAQ ：
Q: Can it mix two fluids together?
A: Yes,the T type structured three-way ball valve suits pipeline fluid diverting and merging operations perfectly.
