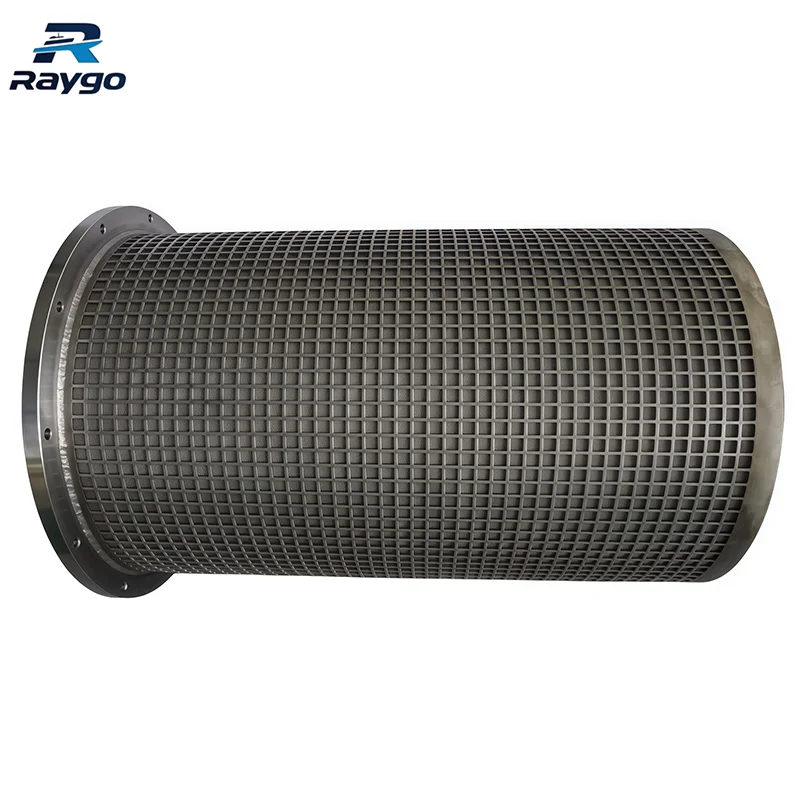

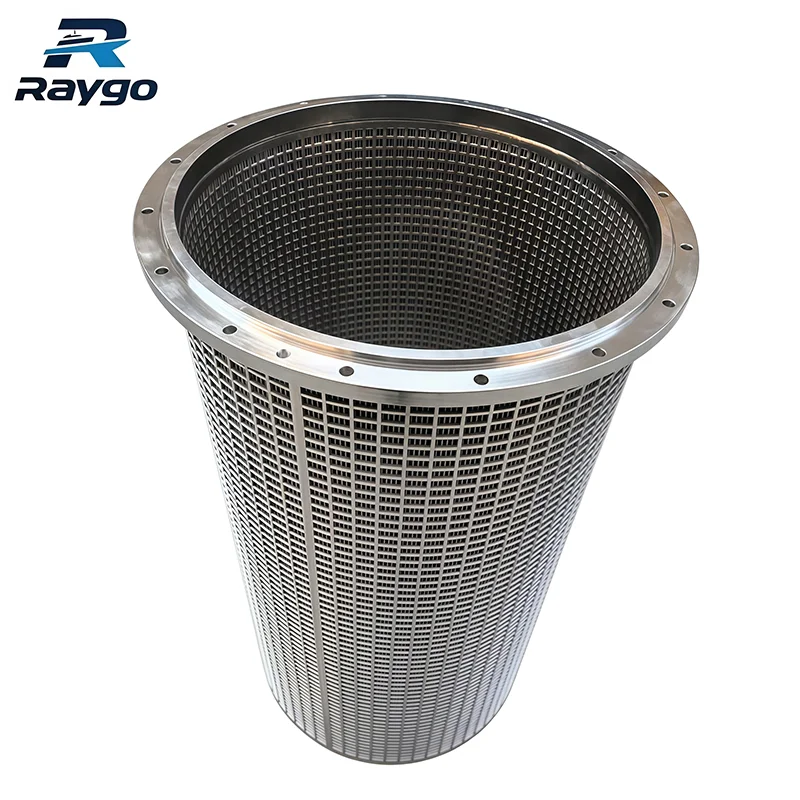

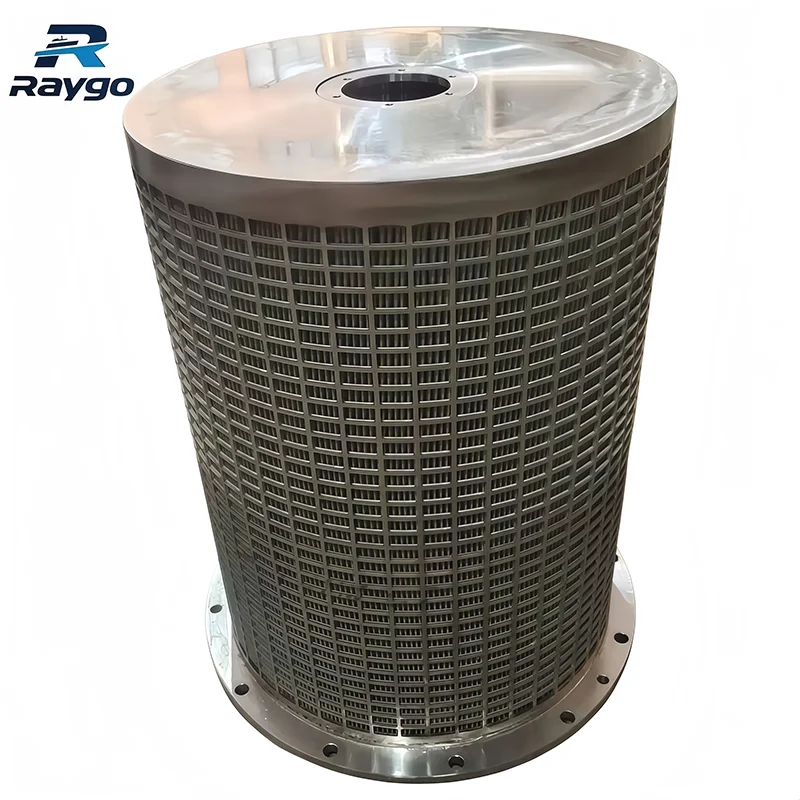

Marine Ballast Water Filter Element for Ballast Water Treatment Systems

A marine ballast water filter element is designed for seawater filtration under high-flow operating conditions. It works before the main disinfection stage and removes larger contaminants that may affect system efficiency. In many ballast water treatment systems, the filter element is installed inside an automatic filter housing and operates together with a backwash mechanism.
Unlike ordinary water filter elements, ballast water filters must handle seawater corrosion, high flow rate, biological impurities, suspended solids and changing pressure conditions. The filter structure should have enough strength to resist water flow impact and maintain stable filtration accuracy during continuous operation.
This product is suitable for new ballast water treatment system installation, filter element replacement, vessel maintenance and system retrofit projects.

Technical Specifications：

The final specification of a marine swivel fairlead should be selected according to rope diameter, working load, rope type, deck layout and installation method. Raygo Marine can provide customized designs based on drawings or project requirements.

Key Features：

• Marine ballast water filter elements are designed for pre-filtration in ballast water treatment systems. They help remove sediment, plankton and large particles before water reaches downstream disinfection units.
• The filter is suitable for high-flow ballast water operation and low pressure drop requirements. It can be designed to work with automatic backwash systems, reducing manual cleaning work and supporting continuous operation.
• The filter structure should be selected according to water quality, vessel type and system design. In high-sediment waters, stronger structure and reliable backwash performance are especially important.

Role in Ballast Water Treatment System：

The ballast water filter element works as the first filtration stage before disinfection. It reduces sediment, plankton and large particles entering downstream units. This helps protect UV lamps, electrolysis units, pipelines, valves and other treatment equipment from excessive contamination.
For vessels with large ballast pump capacity, the filter should support high flow while keeping pressure drop within an acceptable range. For vessels operating in muddy ports, coastal waters or biologically active sea areas, clogging risk and backwash performance should be considered carefully.

Working Principle：

Ballast water enters the filter housing and passes through the filter element. Sediment, plankton and large particles are retained on the filter surface, while cleaner water passes through the filter media and flows to the downstream treatment system.
As impurities accumulate on the filter surface, pressure difference forms between the inlet and outlet sides. When the pressure difference reaches the set value, the control system can start the backwash process. During backwash, the drain valve opens and the contaminants attached to the filter surface are removed and discharged through the drain outlet. After cleaning, the filter returns to normal filtration status and prepares for the next operating cycle.

Structure and Material Features：

Applications：

• Ocean-going Merchant Vessels: Large-flow ballast water treatment.
• Bulk Carriers: High-volume ballast operation.
• Container Ships: Stable treatment for frequent port operation.
• Tankers: Large ballast system filtration.
• Nearshore Vessels: Filtration for muddy or sediment-rich waters.
• Fishing Vessels / Ferries: Coastal ballast water filtration.
• Special Vessels: Customized filtration for harsh conditions.

Selection Guide：

When selecting a marine ballast water filter element, customers should confirm the vessel type, ballast pump capacity, filtration rating, seawater condition and downstream treatment requirements. These factors determine the required filter size, material, flow capacity and backwash compatibility.
If the vessel operates in muddy water or ports with high suspended solids, the filter may need better dirt-holding capacity and reliable backwash performance. If the ballast water system uses multiple filter elements in parallel, each element’s size, quantity and flow distribution should be confirmed.
The filter should match the original filter housing, sealing structure and backwash cleaning method. For replacement projects, photos and drawings of the original filter are very useful.

Replacement and Compatibility：

Raygo Marine can help match marine ballast water filter elements according to original model, drawing, sample, photo or dimensions.
Useful information includes filtration rating, filter length, diameter, interface structure, material grade, backwash design, flow capacity, pressure drop requirement and quantity. If the system is a multi-element filter, the number of filter elements and arrangement should also be provided.

Maintenance and Backwash：

During operation, pressure difference should be monitored. When the pressure difference reaches the set value, the backwash system should remove contaminants from the filter surface and discharge them through the drain outlet.
Maintenance personnel should regularly check filter blockage, surface damage, corrosion, sealing condition and backwash performance. If backwash cannot restore filtration performance, or if the filter element is seriously damaged or deformed, replacement should be considered.

FAQ ：

Q: What is a marine ballast water filter element used for?

A: It is used as a pre-filtration component in ballast water treatment systems to remove sediment, plankton and large particles.

Q: What filtration rating is common for ballast water filters?

A: A common filtration rating is 50μm. Some higher requirements may use 20–30μm.

Q: Can the filter support automatic backwash?

A: Many ballast water filter elements can be designed for automatic backwash systems, depending on filter housing and system design.
