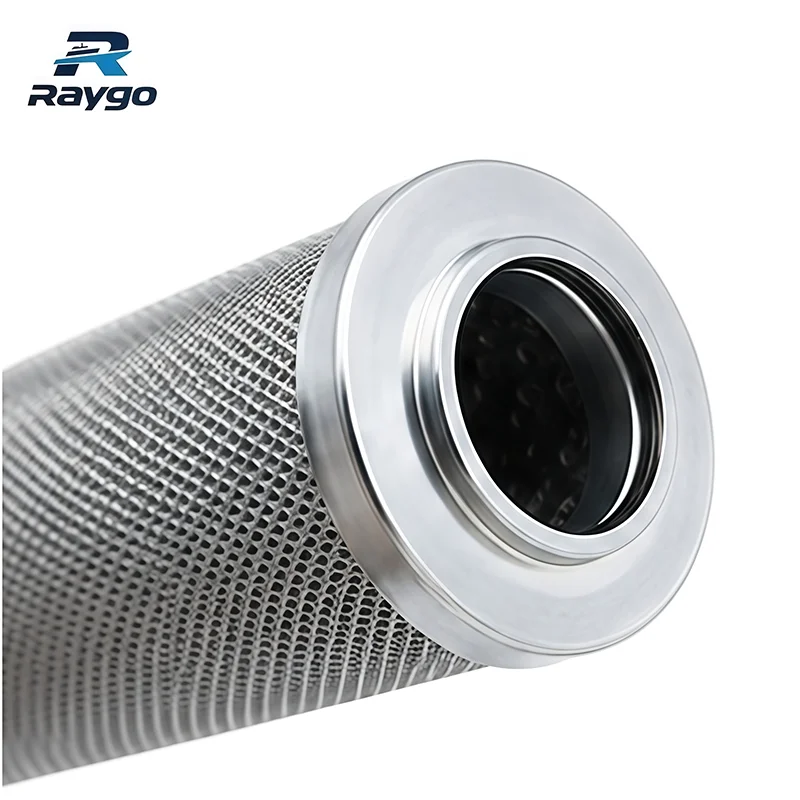

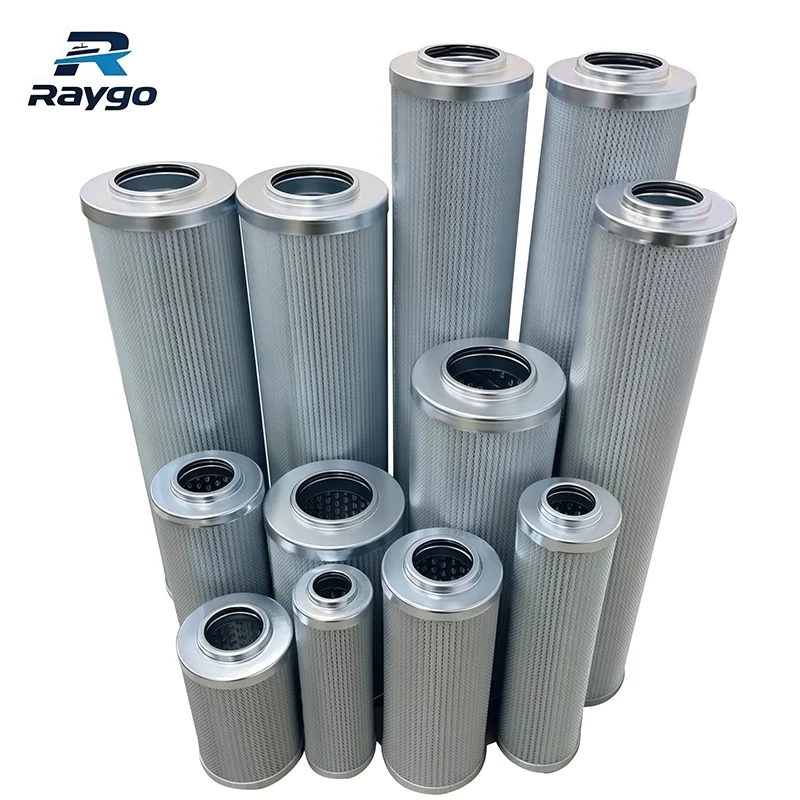

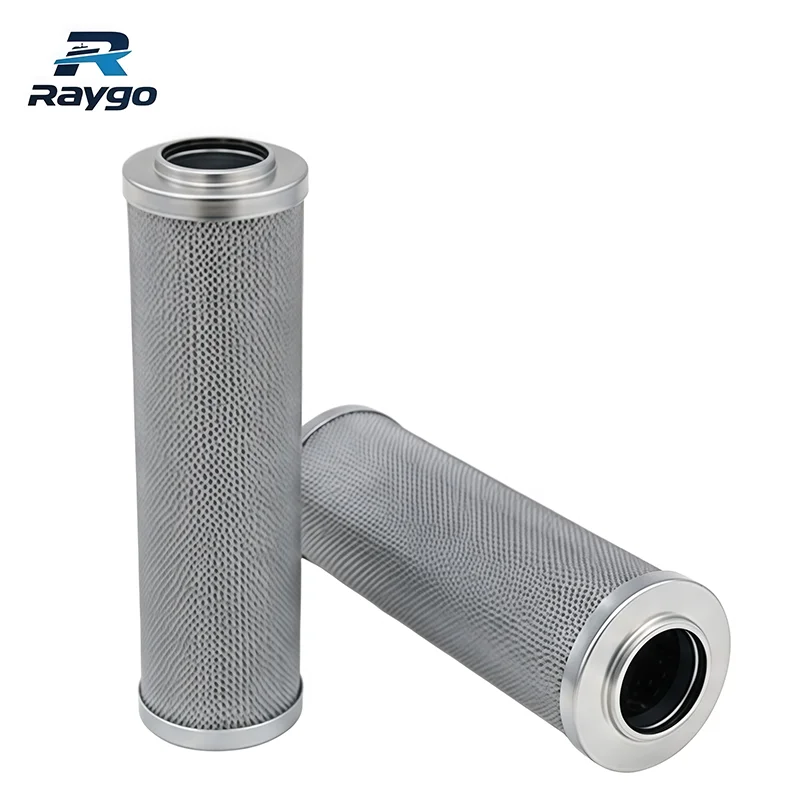

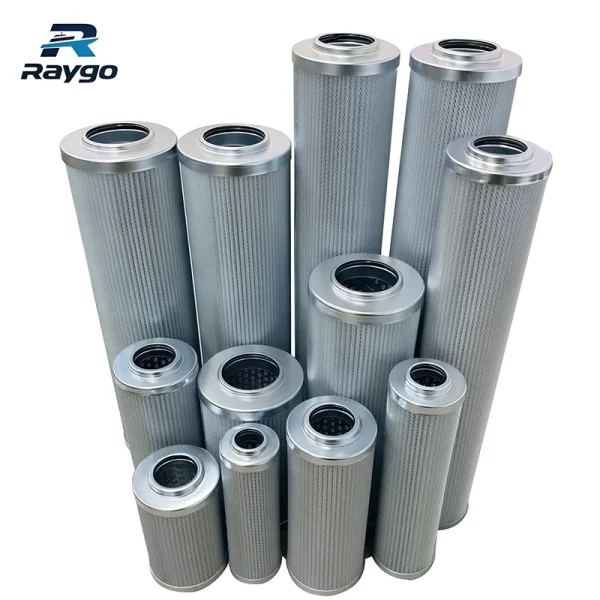

Marine Fiberglass Pleated Oil Filter Element for Fine Oil Filtration

A fiberglass pleated oil filter element is a type of filter element that uses fiberglass media as the main filtering layer and pleated design as the structural form. It is suitable for oil systems where cleanliness requirements are higher than simple coarse filtration.
In marine lube oil or fuel oil systems, small particles and metal debris may affect bearings, gears, pumps, valves and other precision components. A fiberglass pleated oil filter element helps reduce these contaminants and maintain oil cleanliness.
The pleated design is especially useful when the filter housing has limited space but the system still requires sufficient filtration area and flow capacity.

Technical Specifications：

The final specification of a marine swivel fairlead should be selected according to rope diameter, working load, rope type, deck layout and installation method. Raygo Marine can provide customized designs based on drawings or project requirements.

Key Features：

• Marine pleated fiberglass oil filters are designed for applications demanding high oil cleanliness and an expanded effective filtration area. The fiberglass media effectively captures fine contaminants, while the pleated configuration significantly increases the available filtration surface area.
• This product is especially useful for oil systems where space is limited but filtration performance cannot be reduced. It helps protect components by reducing fine particles, sludge and metal debris in the oil.
• The filter should be selected according to actual oil type, operating temperature, flow rate and system pressure.

Working Principle：

Oil enters the filter housing and passes through the pleated fiberglass media. Fine particles, sludge, metal debris and other contaminants are retained by the filter layer. Cleaner oil then flows back into the oil system.
The pleated media increases the contact area between oil and filter material. This helps improve dirt-holding capacity and supports smoother oil flow compared with a flat filter surface of the same installation size.
As the filter captures contaminants, pressure drop may rise gradually. The filter should be replaced when clogging, damage or excessive pressure drop occurs.

Product Structure and Material Features：

The main feature of this product is the combination of fiberglass filter media and pleated structure. Fiberglass media is suitable for finer particle capture in oil filtration applications. The pleated structure provides larger filtration area inside limited space.
The filter may include inner and outer support layers, end caps and sealing components depending on the original filter housing. These parts should be matched carefully to ensure installation fit and prevent bypass.
For marine use, oil compatibility, temperature resistance, pressure resistance and sealing stability should be considered.

Applications：

• Lube Oil System: Helps maintain cleaner circulating lubricating oil.
• Fuel Oil System: Removes fine particles and oil contaminants.
• Generator Oil System: Supports stable generator oil circulation.
• Auxiliary Oil Filtration: Protects pumps, valves and moving parts.

Selection Guide：

When selecting a marine fiberglass pleated oil filter element, customers should confirm whether the oil system requires fine filtration and higher dirt-holding capacity. The filter should be selected according to oil medium, filtration rating, flow rate, pressure and temperature.
The filtration rating should follow equipment requirements. A filter that is too fine may clog quickly if the oil contamination level is high. A filter that is too coarse may not provide enough protection for precision components.
For replacement, customers should check the filter dimensions, end cap type, inner support structure, sealing method and original filter housing.

Replacement and Compatibility：

Raygo Marine can help match marine fiberglass pleated oil filter elements by part number, model, old filter photo, drawing, sample or dimensions.
Useful information includes outer diameter, inner diameter, length, filtration rating, oil medium, end cap structure, sealing type, working pressure, temperature and quantity. For customized replacement, photos of both ends and the filter body can help improve matching accuracy.

Maintenance Tips：

Fiberglass pleated oil filter elements are usually replaced rather than repeatedly cleaned, depending on their specific design. The filter should be replaced when pressure drop is too high, oil flow is affected, or the filter is damaged.
Oil quality has a direct influence on filter service life. If the oil contains a large amount of sludge or metal debris, the filter may clog faster. Maintenance intervals should follow equipment manuals and actual operating conditions.

FAQ ：

Q: What is the advantage of a fiberglass pleated oil filter element?

A: It provides finer oil filtration and larger filtration area within limited installation space.

Q: Can it be used for marine lube oil systems?

A: Yes. It can be used in marine lube oil systems when the specifications match the system requirements.

Q: What information is needed for replacement?

A: Filter size, oil medium, filtration rating, end cap structure, sealing type, pressure and temperature are important.
