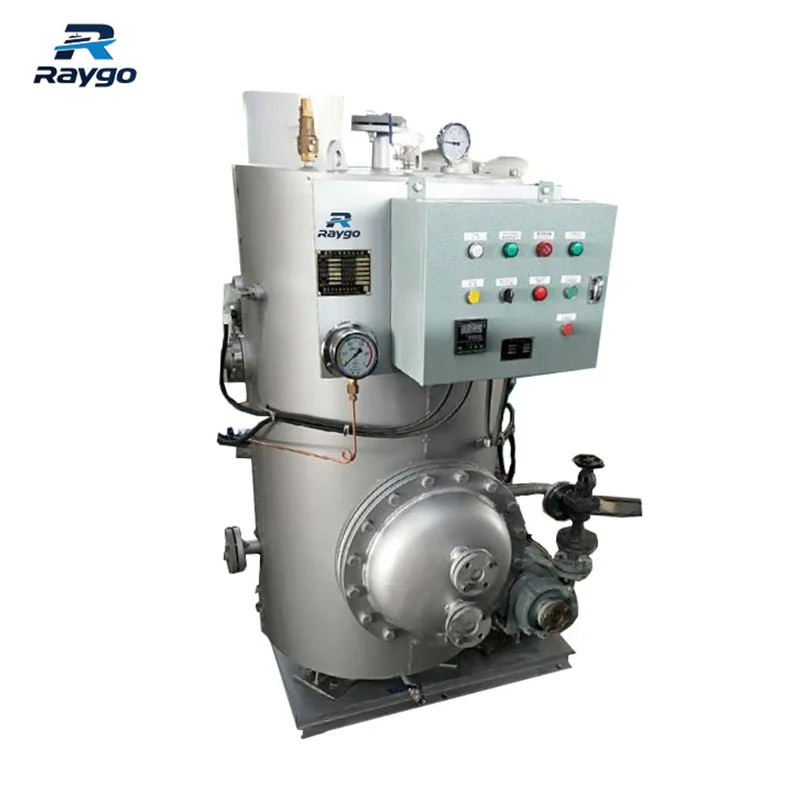

Marine Electrically Heated Calorifier | Independent Hot Water Supply
An independent hot water solution for your vessel. Our electric calorifier uses heating elements to warm water, making it ideal for in-port use or on ships without a constant steam supply. You can specify the required heating power (KW).
Accreditation and Certificates:

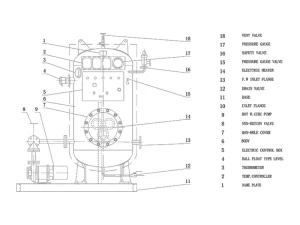

Product Drawings
Technical Specifications：
| Parameter | Specification |
| Volume (Capacity) | 0.1m³-3m³ |
| Working Pressure | 0.1 MPa -1.0 MPa |
| Tank Material | Stainless Steel or Carbon Steel |
| Heating Method | Electric Heating Elements (Power is customizable) |
| Key Components | Tank, Gauges, Temp Controller, Safety Valve, Level Controller, Pump, Control Box |
Key Features：
- Independent Electric Heating: Operates solely on electrical power, independent of the main boiler’s status. Ideal for in-port use.
- Customizable Heating Power: We select the electric heating power (KW) based on tank volume and your required heating time.
- Automated & Safe Operation: An automated control system manages temperature. Your crew is protected by a pressure relief valve,
low-level protection, and explosion-proof heating elements. - Simple Installation: Requires only water pipe connections and an electrical supply, simplifying the installation process.
Applications：
- In-Port Hot Water Supply: Provides reliable hot water when the ship’s main boilers are offline.
- Primary Heater for Smaller Vessels: Acts as the main hot water source for tugs, workboats, or yachts without large steam plants.
- Backup Systems: Serves as a secondary or emergency hot water source on larger vessels.
Installation & Maintenance：
Installation: Secure the unit’s base. Connect the cold water inlet and hot water outlet pipes. Connect the main power supply to the electrical control box per the wiring diagram.
Maintenance: Periodically inspect the electric heating elements and their connections. Clean internal scale via the manhole to maintain heating efficiency.
Custom Options Available：
We build units with custom volumes, dimensions, materials, and specific electrical heating power ratings (KW).We can supply full certification from any major classification society.
