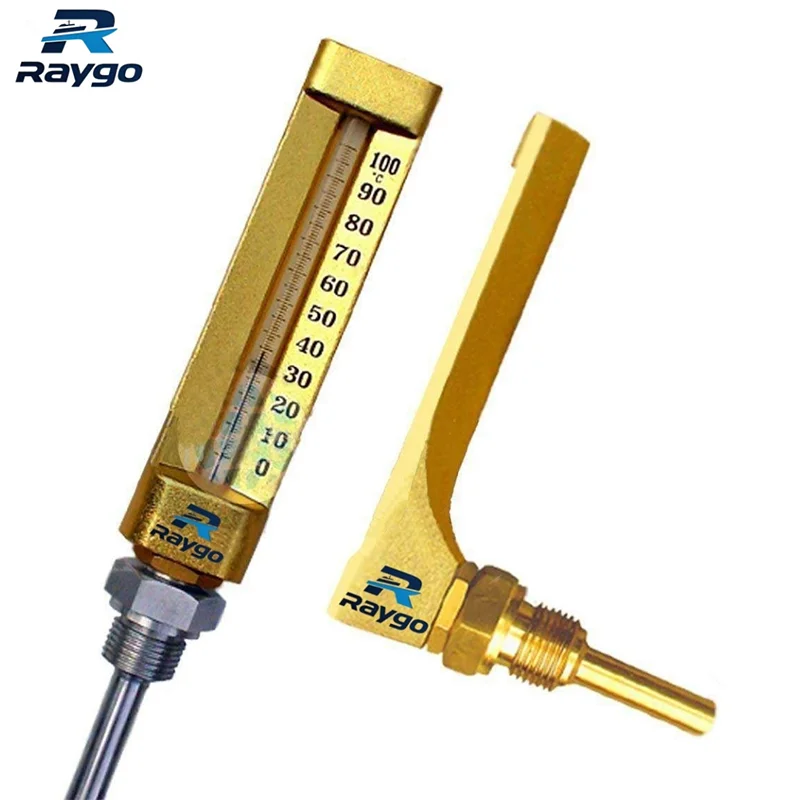

Marine Metal Case Thermometer (WLG) | Direct Reading Industrial Thermometer

Technical Specifications：

Key Features：

• Protective Metal Casing: An outer metal housing protects the internal glass thermometer from damage.
• Direct Visual Scale Reading: The graduated glass scale provides a clear, power-free temperature indication.
• Straight and Angle Configurations: You can select a straight (vertical) or 90-degree angle type to fit your installation space.
• Multiple Connection Options: We offer a range of standard metric (M27x2, M20x1.5) and imperial (G1/2″, G3/4″) thread sizes.

Applications：

• Water Tanks: For visual confirmation of fresh water, ballast water, or other service water temperatures.
• Small Oil Tanks: Allows for local checks of lube oil or diesel service tank temperatures.
• General Pipe Systems: Provides simple temperature indication on various low-pressure pipe systems.

Installation & Maintenance：

Installation: Screw the thermometer into the corresponding threaded port on the pipe or tank. Use a suitable sealant. The unit should be installed in a visible and accessible location.
Maintenance: This unit requires minimal maintenance. You should periodically clean the external glass and metal surfaces.

Custom Options Available：

Need something specific?

We can build units with special temperature ranges, non-standard probe lengths, and different thread connections upon request.

FAQ ：

Q: Why use a metal case thermometer?

A: Its primary advantage is durability. The metal case protects the fragile glass thermometer from accidental impact and vibration, which is common in machinery spaces.

Q: What is the difference between straight and angle types?

A: You choose the type based on the installation point. A straight type is for top-mounted installations. An angle type is for side-mounted installations where you need to read the scale from the front.
