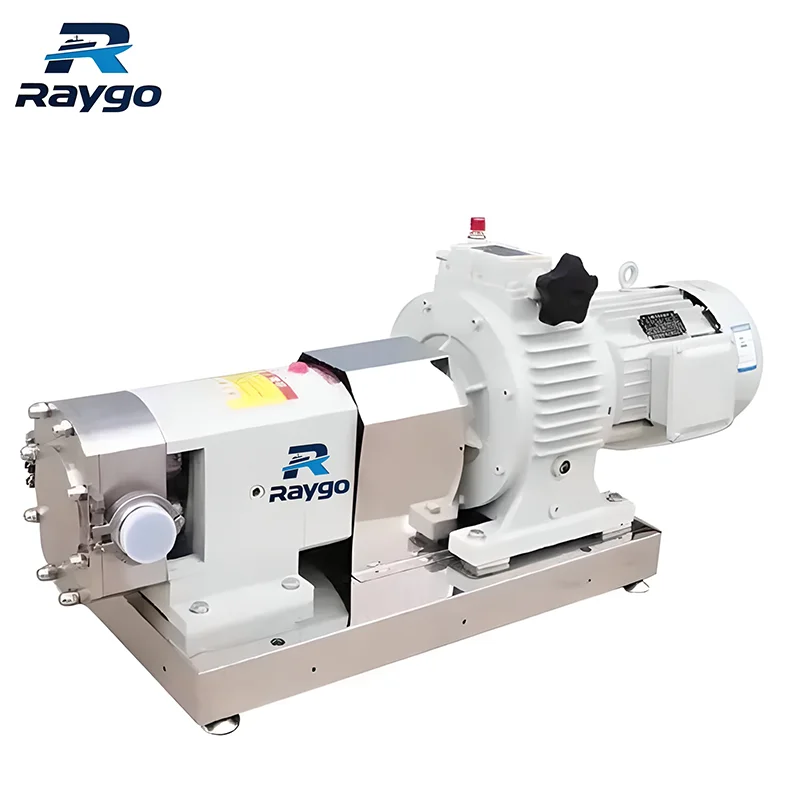

Marine Rotary Lobe Pump (3RP/LC Series) | Solids Handling & Sanitary Transfer
A positive displacement pump with high efficiency and long life. Perfect for suspension liquids with solid particles, corrosive media, and high-hygiene requirements. Handles viscosities up to 100,000 cSt.
Accreditation and Certificates:
Overview
Rotary lobe pumps (3RP/LC Series) are designed for versatility. They belong to rotating positive displacement pumps. They can transfer suspension liquids containing solid particles. Internal parts contacting the medium are made of stainless steel, making them suitable for corrosive and hygienic applications. The rotation speed can be adjusted to match the medium’s physical properties.
Technical Specifications：
| Parameter | Specification |
| Capacity (3RP) | 6 -156 L/100r (Displacement) |
| Capacity (LC) | 10 -100 m³/h |
| Max Pressure | 0.4 -1.0 MPa |
| Viscosity | 30-100,000 cSt |
| Temperature | -30°C to +200°C |
Key Features：
- Solids Handling: Pumps suspension liquids with solid particles.
- High Viscosity: Handles 30 to 1.0 x 10⁵ cSt.
- Sanitary/Corrosion Resistant: Stainless steel contact parts.
- Temperature Range: Operates from -30°C to +200°C.
- Outstanding Self-Priming: Strong suction capability.
Applications：
- Food & Drink: Syrup, juice, milk, edible oil.
- Petroleum: Diesel, engine oil, thick oil.
- Chemical: Solvent naphtha, kerosene, asphalt.
- Daily Chemical: Toothpaste, soap.
Installation & Maintenance：
Installation: Can be belt driven (Type A/B) or reducer driven (Type ZD/ZL).
Maintenance: Stainless steel parts ensure long life.
Custom Options Available：
Variable speed adjustments based on medium properties.
