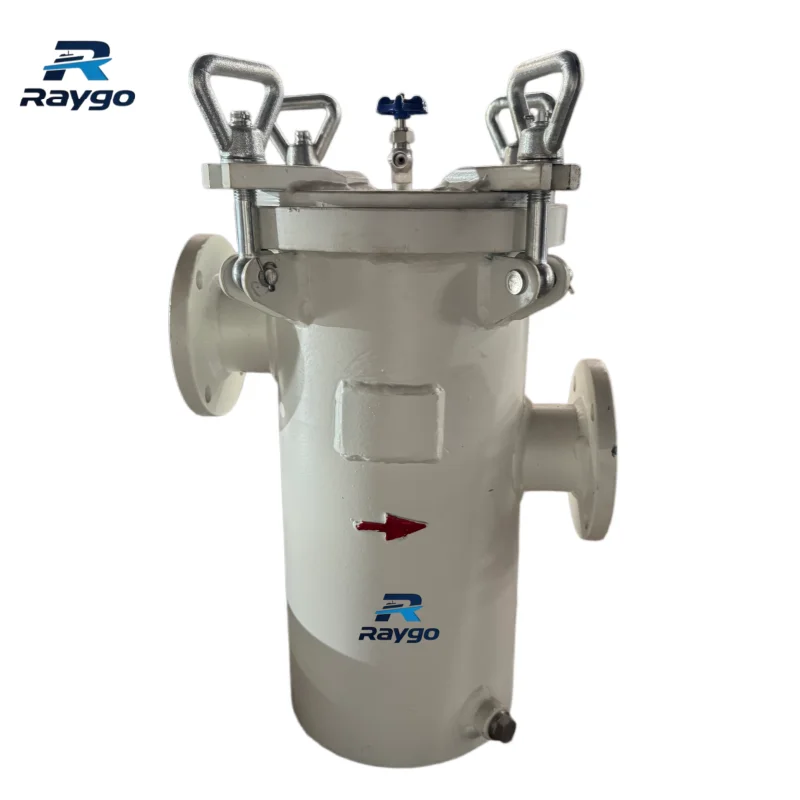

Marine Simplex Oil Filter | High Efficiency Single Cylinder Equipment
Simple single cylinder filtration equipment. Designed to filter fuel and lubricating oil. Maintenance is convenient with a filtration precision of 25um.
Accreditation and Certificates:
Simplex oil filters provide reliable oil filtration solutions. Carbon steel or stainless steel makes up the main body. Stainless steel or glass fiber elements sit inside. Operators can clean and replace parts easily due to its simple structure. Magnetic components are often equipped to absorb ferromagnetic metal particles. Nominal diameters range from DN15 to DN400.

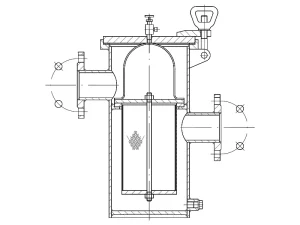

Product Drawings：
Technical Specifications：
| Parameter | Specification |
| Nominal Diameter | DN15 to DN400 |
| Working Pressure | Usually under 0.5MPa |
| Precision | 25um |
| Body Material | Carbon steel, Stainless steel |
| Element Material | Stainless steel, Glass fiber |
Key Features：
- Filtration precision reaches 25um.
- Filter elements are easy to clean and maintain.
- Magnetic components absorb metal particles.
- Differential pressure alarms are optional.
Applications：
- Marine power systems: Purifying engine fuel.
- Marine lubrication systems: Filtering oil for critical parts.
- Industrial fields: Suitable for metallurgy and thermal power sectors.
Installation & Maintenance：
Installation: Connect pipelines using standard flange interfaces.
Maintenance: Clean or replace the filter element regularly.
Custom Options Available：
Working pressure is customizable according to customer needs.
FAQ ：
Q: What main components make up the equipment?
A: It consists of a cylinder, filter element assembly, drain valve, and vent valve.
