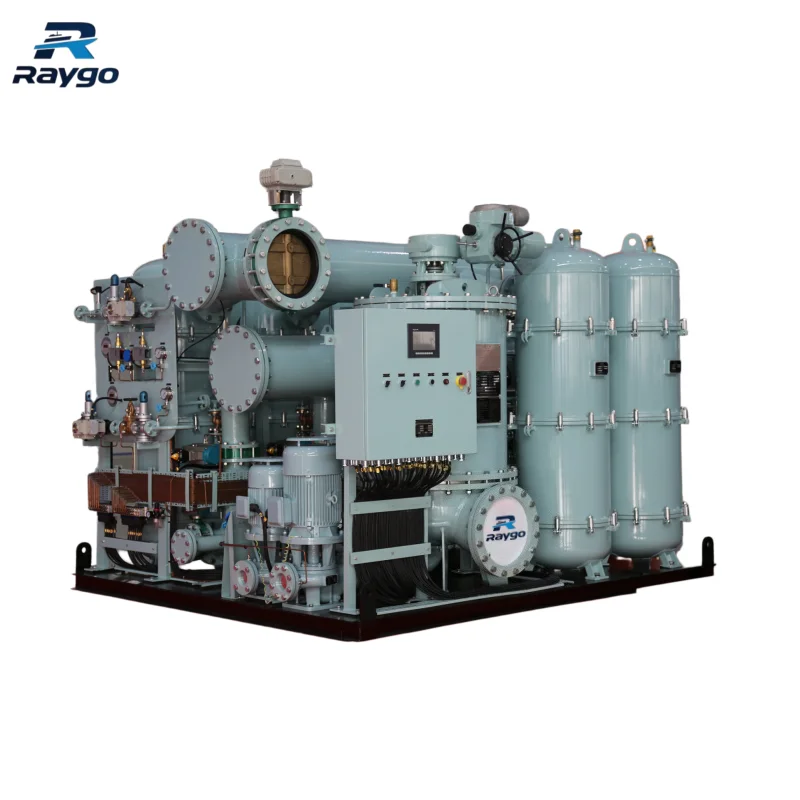

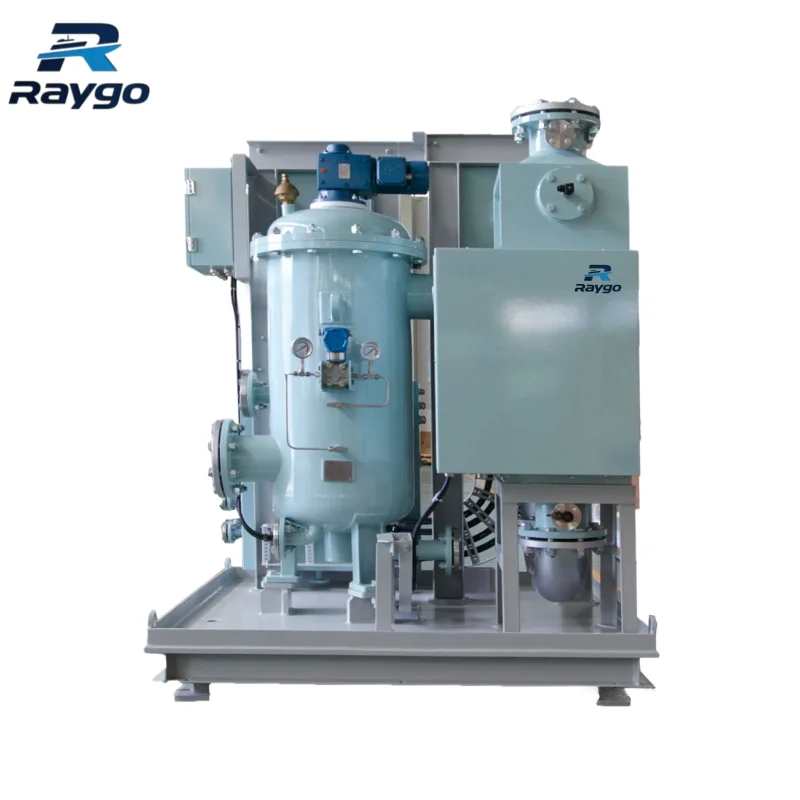

Ballast Water Treatment System (BWTS) | IMO & USCG Type Approved
An IMO and U.S. Coast Guard (USCG) type-approved Ballast Water Treatment System for global maritime compliance. This unit uses a two-stage process of filtration and high-intensity UV disinfection to neutralize harmful aquatic organisms without using active chemicals. It ensures a vessel meets all international and regional discharge standards.
Accreditation and Certificates:
First, incoming water passes through an automatic back flushing filter. This stage removes sediment, zooplankton, and other larger organisms. The pre-filtered water then flows into the UV reactor chamber. Inside the chamber, medium pressure UV lamps emit high intensity ultraviolet light, which penetrates the cells of bacteria and phytoplankton, destroying their DNA and rendering them non-viable. The treated water is then fully compliant with IMO D-2 standards.
Technical Specifications：
| Parameter | Specification |
| Treatment Capacity Range | 50 m³/h -5,000 m³/h |
| Filtration Accuracy | 40-50 microns (μm) |
| UV Technology | Medium Pressure UV Lamps |
| Control System | PLC Based, Touch Screen Interface |
| Key Certifications | IMO BWM Convention (D-2), U.S. Coast Guard (USCG) |
Key Features：
- Two Stage Treatment Process: The system combines an automatic back-flushing filter (typically 40-50 microns) with a high-intensity, medium-pressure UV disinfection chamber.
- Chemical Free Disinfection: The use of UV light for sterilization is a purely physical process. It uses no active chemicals, generates no toxic disinfection by-products, and is safe for the crew.
- Automated Operation: The unit is fully automated and controlled by a PLC system. It monitors treatment performance in real-time and integrates with the ship’s ballast control system for simple operation.
- Global Compliance & Certification: The system holds full Type Approval certificates from both the IMO and the U.S. Coast Guard (USCG), which permits unrestricted operation worldwide.
Applications：
This system is suitable for installation on a wide range of newbuild and retrofit vessel types, including:
- Bulk Carriers.
- Container Ships.
- Tankers (Oil, Chemical, LNG).
- General Cargo Ships.
- Ro-Ro Vessels and Car Carriers.
Installation & Maintenance：
Installation: The system is delivered as a modular unit (Filter, UV chamber, Control cabinet) for flexibleinstallation in the engine room or pump room. It requires connection to the main ballast lines, the ship’s electrical power supply, and the ballast control system.
Maintenance: Routine maintenance primarily involves the periodic replacement of the UV lamps and wiper rings. The filter’s automatic back-flushing function minimizes the need for manual cleaning.
Custom Options Available：
We provide systems with a range of treatment capacities to match a vessel’s specific ballast pump flow rate. For installation on tankers, we offer explosion-proof (Ex-proof) rated models for all electrical components. We can also assist with engineering for custom piping layouts.
