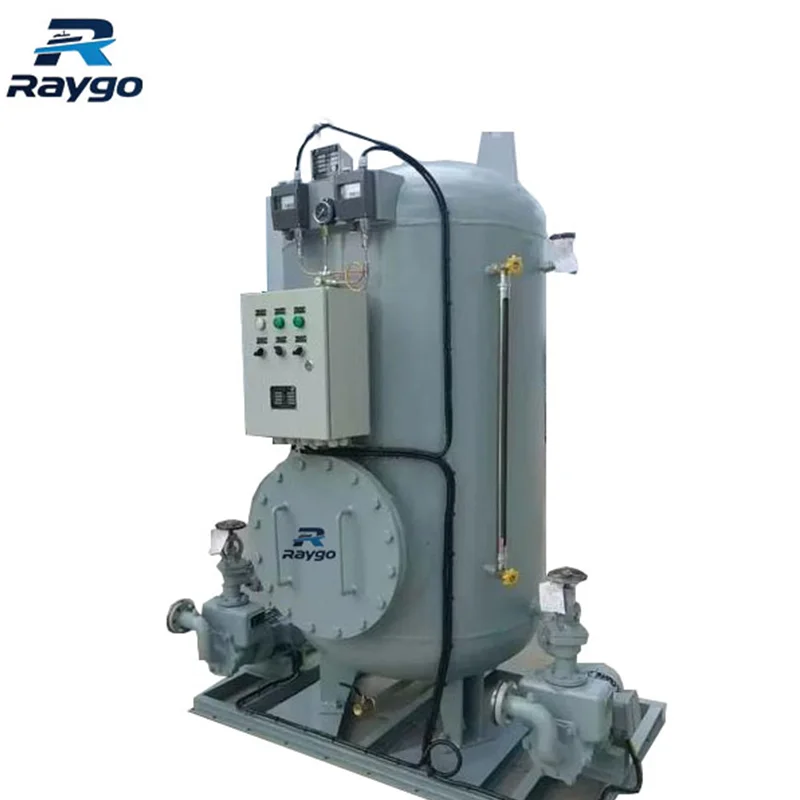

Marine Steam Heated Calorifier | Energy-Efficient Hot Water Supply

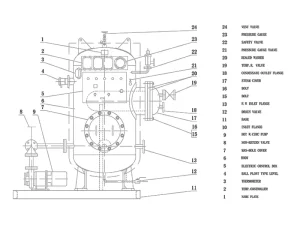

Product Drawings

Technical Specifications：

Key Features：

• Energy-Efficient Steam Heating: Utilizes available steam from boilers to reduce the vessel’s electrical load.
• Automated Temperature Control: An integrated control system and steam regulating valve automatically maintain the water temperature.
• Complete System Assembly: Arrives as a full package including the tank, gauges, controllers, safety valve, pump, and control cabinet.
• Designed for Safety & Maintenance: Equipped with a pressure relief valve and low-level protection. A manhole (diameter 2500mm) provides access for internal cleaning.

Applications：

• Vessels with Continuous Boiler Operation: Provides efficient hot water production at sea for cargo ships, tankers, and bulk carriers.
• High-Demand Hot Water Systems: Supplies large, continuous volumes of hot water for accommodation and galleys.

Installation & Maintenance：

Installation: Secure the unit’s base to a solid foundation. Connect the cold water inlet, hot water outlet, steam supply, and condensate return lines. Connect power to the control cabinet.
Maintenance: Periodically inspect the steam regulating valve and safety valve. Clean internal scale via the manhole as required.

Custom Options Available：

Need something specific?

We build units with custom volumes, dimensions, and materials (Stainless Steel or Carbon Steel). We can supply full certification from any major classification society (CCS, ABS, DNV, etc.).

FAQ ：

Q: Why choose steam heating?

A: Steam heating uses available energy from your ship’s boiler. It often lowers fuel consumption compared to dedicated electric heating during voyages.

Q: What happens if the steam pressure is too high?

A: A steam temperature regulating valve controls the heat input into the tank. The water side of the tank is protected by its own pressure relief valve.
