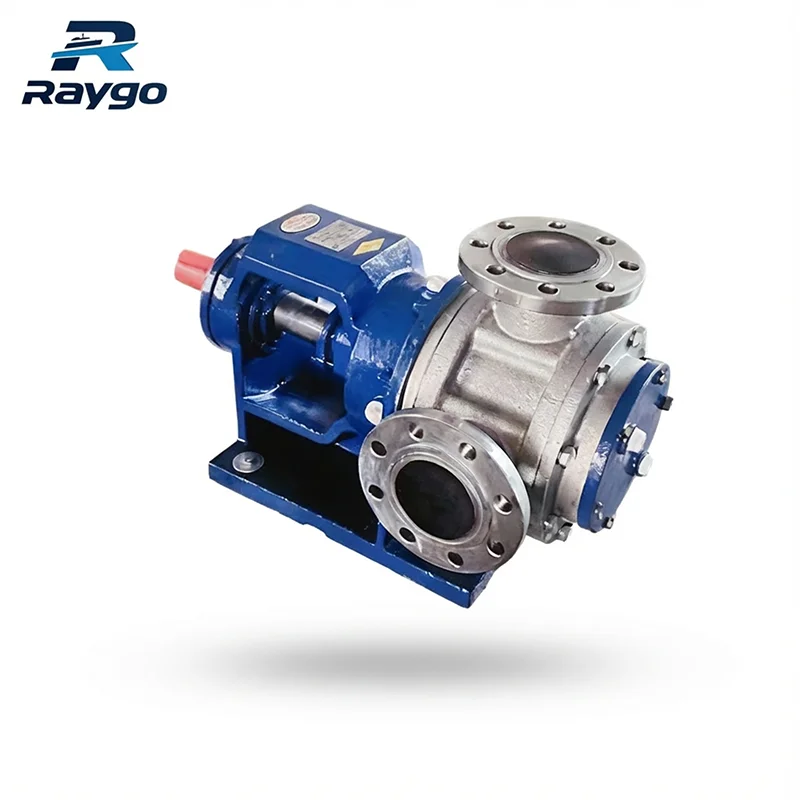

NYP Series Marine Internal Gear Pump | High Viscosity Specialist
The ultimate solution for thick fluids. This positive displacement pump uses an internal rotor design to pump high-viscosity media like bitumen, resins, and paint. Handles viscosities up to 300,000 cSt.
Accreditation and Certificates:
Overview
NYP pumps operate on the internal gear principle. An outer rotor drives an inner rotor in the same direction, resulting in little wear and long life. It handles viscosities from 1.0 to 300,000 cSt and temperatures from -10°C to 200°C. The flow is steady without pulsation, vibration, or noise. Flow capacity can be changed by adjusting the speed.
Technical Specifications：
| Parameter | Specification |
| Displacement | 0.78-1670 L/100rev |
| Differential Pressure | 0.4-1.0 MPa |
| Max Viscosity | 300,000 cSt |
| Max Temp | 200°C |
Key Features：
- High Viscosity Handling: Up to 300,000 cSt.
- Steady Delivery: No pulsation, little vibration.
- Adjustable Flow: Linear relationship between speed and flow.
- Corrosion Resistant: Can pump corrosive mediums with proper material selection.
- Strong Self-Priming: Outstanding suction ability.
Applications：
- Petroleum & Chemical: Heavy fuel oil, bitumen, resins, paint.
- Food Industry: Molasses, fats.
- Medicine & Dye: Specialized viscous fluid transfer.
Installation & Maintenance：
Installation: Contact manufacturer for speed/power selection on high viscosity fluids.
Maintenance: Low wear due to same-direction rotation extends maintenance intervals.
Custom Options Available：
Different pump materials available for corrosive mediums. Flange connections standard.
