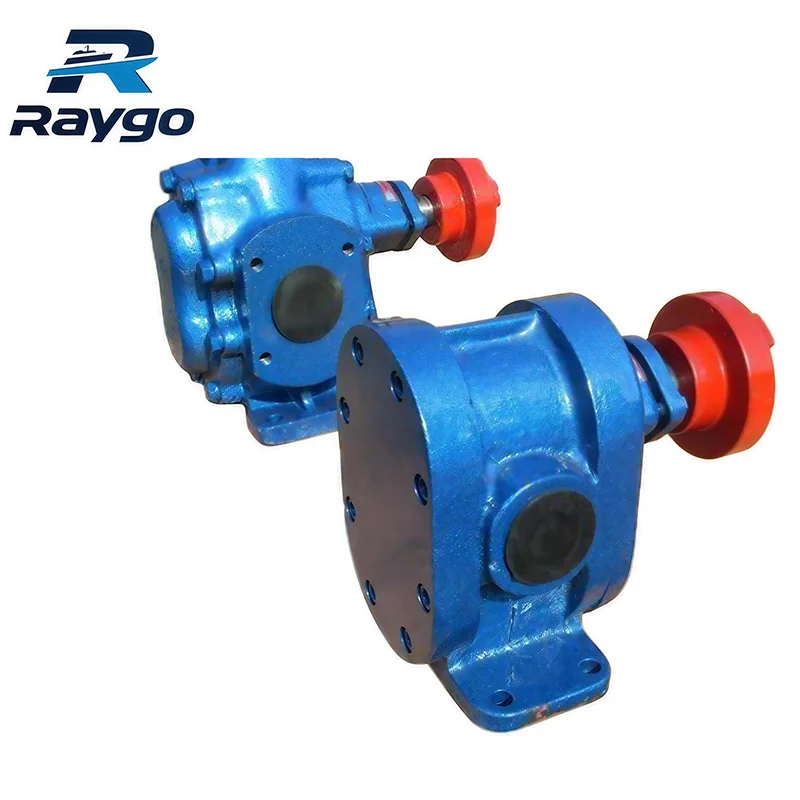

2CY Series Marine Gear Pump | High-Pressure Lubrication
Designed for high-pressure applications up to 2.5 MPa. 2CY pumps serve mainly as hydraulic drive pumps or boosters in lubrication systems. Features floating bearing sleeves for automatic adjustment.
Accreditation and Certificates:
Overview
2CY Series pumps utilize nitriding-treated gears for higher hardness and wear properties. The key innovation is the four bearing sleeves installed suspended in the pump body. These sleeves automatically adjust facing gap clearance according to pressure changes. This results in stable pressure, little discharge pulsation, and high volume efficiency. It is ideal for hydraulic transmission or forceful lubrication.
Technical Specifications：
| Parameter | Specification |
| Flow Rate | 1.08-21 m³/h |
| Pressure | 2.5 MPa |
| Speed | 1420-1460 RPM |
| Efficiency | 58%-63% |
Key Features：
- High Pressure Capability: Rated for 2.5 MPa.
- Floating Bearing Sleeves: Automatically adjust clearance for stable pressure.
- Hardened Gears: Nitriding treatment ensures wear resistance.
- High Efficiency: Low flow pulsation and high volume efficiency.
Applications：
- Hydraulic Systems: Providing hydraulic power for machinery.
- Booster Pump: Increasing pressure in oil delivery systems.
- Lubrication: For all industrial fields requiring lubricating pumps.
Installation & Maintenance：
Installation: Ensure rotation is clockwise from the coupling end.
Maintenance: Internal parts are lubricated by the delivered medium; ensure clean fluid.
Custom Options Available：
Magnetic force drive and zero-leakage structures are available.
