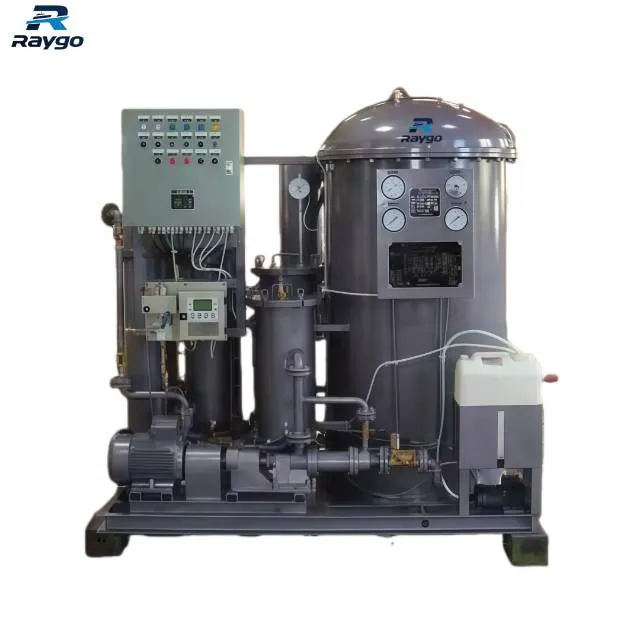

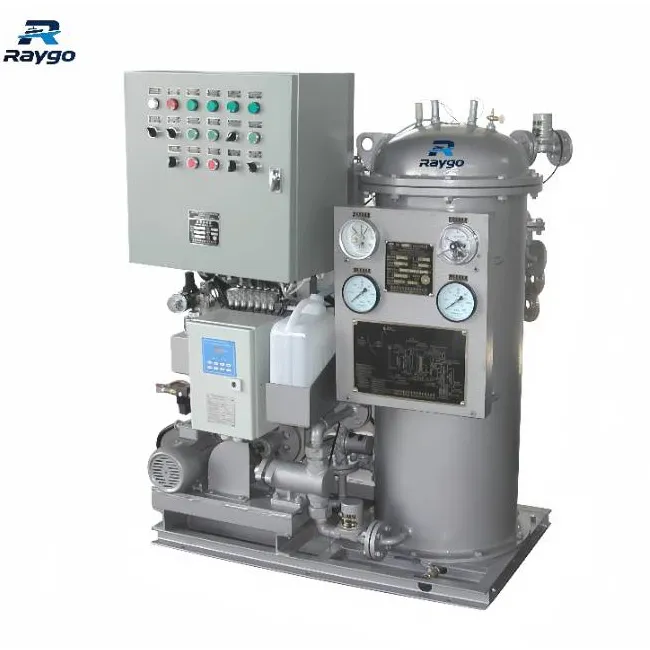

YWC Series Marine Oil Water Separator | IMO MEPC.107(49) Compliant
High-efficiency bilge water treatment system utilizing multi-stage separation. Delivers discharge oil content ≤15ppm using vacuum suction and ultrafiltration technology. Meets all IMO MEPC.107(49) requirements.
Accreditation and Certificates:
YWC Series separators manage oily bilge water through a precise three-stage process. Piston pumps draw water into the unit. Negative pressure facilitates gravity and coalescence separation while reducing fluid agitation to minimize emulsification. Liquid then moves to the second stage, passing through a fiber filter. Adsorption and filtration remove finer oil particles here. Systems automatically switch to the third stage if oil concentration remains high. Ultrafiltration membrane technology performs deep treatment in this final phase. Integrated oil content meters trigger an alarm if levels still exceed limits. Non-compliant water diverts back to the bilge via a pneumatic three-way valve, preventing overboard discharge.
Technical Specifications：
| Model | YWC-0.50 | YWC-1.00 | YWC-1.50 | YWC-2.00 | YWC-2.50 | YWC-3.00 | YWC-4.00 | YWC-5.00 |
| Rated / Max Capacity (m³/h) | 0.50 / 0.62 | 1.0 / 1.25 | 1.5 / 1.87 | 2.0 / 2.25 | 2.5 / 3.12 | 3.0 / 3.75 | 4.0 / 5.0 | 5.0 / 6.25 |
| Motor Power (kW) | 0.55 | 0.75 | 1.1 | 1.1 | 1.5 | 1.5 | 2.2 | 2.2 |
| Electric Heating Power (kW) | 3 | 6 | 6 | 6 | 6 | 12 | 12 | 12 |
| Oil Content in Discharged Liquid | ≤15 ppm | |||||||
| Applicable Vessel (KDWT) | <5 | 5–10 | 10–30 | 30–50 | 50–100 | 100–200 | 100–300 | >300 |
Key Features：
- Anti-Emulsification: Vacuum negative pressure reduces oil-water mixing.
- High Efficiency: Multi-stage process ensures discharge oil content ≤15ppm.
- Smart Control: Integrated 15ppm alarm monitors discharge in real-time.
- Auto-Protection: Automatically stops discharge or recycles water if limits are breached.
- Wide Adaptability: Handles diesel, engine oil, and lube oil effectively.
Applications：
- Bilge Management: Treating oily water from ship engine rooms.
- Industrial Cleaning: Wastewater from tanker washing and shipyards.
- Power Systems: Purifying air compressor condensate and power plant waste.
- Land Use: Processing oily wastewater from mines and factories.
Installation & Maintenance：
Installation: Select models based on vessel tonnage or wastewater generation.
Maintenance: Timely replacement of filter cores is required to maintain performance.
Custom Options Available：
Models compatible with complex land-based oily wastewater are available. Priority should be given to units with ship inspection certification.
FAQ ：
Q1: What standards does this meet?
A1: Compliance with IMO MEPC.107(49) resolution is guaranteed.
Q2: Can it reduce oil-water emulsification ?
A2: Yes. Vacuum negative pressure and atmospheric ultrafiltration reduce emulsification significantly.
