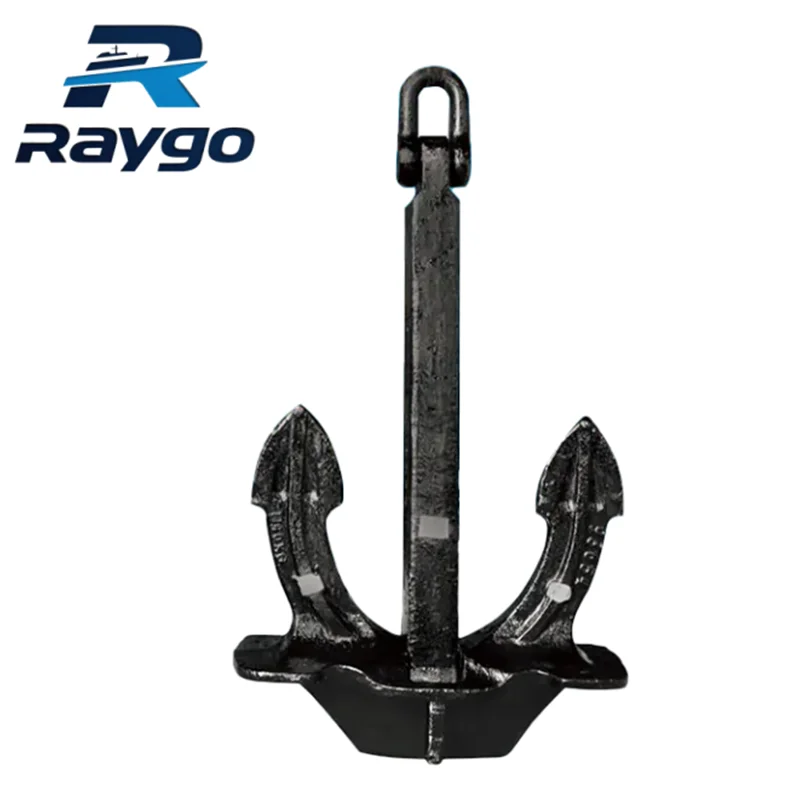

Marine Japanese Stockless Anchor | For Sailing & Small Vessels
A simple and effective stockless anchor commonly used on sailing vessels. Both the flukes and shank are made from cast steel. Its straightforward design provides reliable holding power for smaller boats. You get a classic, proven anchor for your vessel.
Accreditation and Certificates:
Overview
Our Japanese stockless anchor is a traditional and reliable design. The cast steel flukes are connected to the cast steel shank with a simple pin. This pivot allows the flukes to rotate and dig into the seabed when dragged. Like other stockless anchors, it is easy to retrieve and stow in the hawsepipe or on a bow roller. It is a popular and cost-effective choice for many smaller vessels.

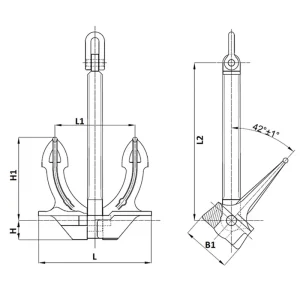

Product Drawings：
Technical Specifications：
| Nominal Weight (KG) |
Dimensions (mm) | ||||||
|---|---|---|---|---|---|---|---|
| L | L1 | L2 | H | H1 | B1 | ||
| 180 | 650 | 459 | 910 | 111 | 480 | 280 | |
| 240 | 720 | 510 | 1010 | 122 | 530 | 310 | |
| 300 | 770 | 540 | 1080 | 131 | 570 | 331 | |
| 360 | 820 | 580 | 1150 | 139 | 610 | 353 | |
| 420 | 860 | 610 | 1200 | 146 | 640 | 370 | |
| 480 | 900 | 640 | 1260 | 153 | 670 | 387 | |
| 570 | 950 | 670 | 1330 | 162 | 700 | 408 | |
| 660 | 1000 | 750 | 1440 | 170 | 740 | 430 | |
| 900 | 1060 | 780 | 1480 | 180 | 780 | 456 | |
| 780 | 1110 | 710 | 1550 | 189 | 820 | 477 | |
| 1020 | 1160 | 820 | 1620 | 197 | 860 | 500 | |
| 1140 | 1200 | 850 | 1680 | 204 | 890 | 520 | |
| 1440 | 1250 | 880 | 1750 | 212 | 920 | 540 | |
| 1290 | 1300 | 920 | 1820 | 221 | 960 | 560 | |
| 1590 | 1340 | 950 | 1880 | 228 | 990 | 580 | |
| 1740 | 1380 | 980 | 1930 | 235 | 1020 | 600 | |
| 1920 | 1430 | 1010 | 2000 | 243 | 1060 | 620 | |
| 2100 | 1470 | 1070 | 2060 | 250 | 1090 | 640 | |
| 2280 | 1510 | 1040 | 2110 | 257 | 1120 | 650 | |
| 2460 | 1550 | 1100 | 2170 | 264 | 1150 | 670 | |
| 2640 | 1590 | 1120 | 2230 | 270 | 1180 | 690 | |
| 2850 | 1670 | 1150 | 2280 | 277 | 1210 | 700 | |
| 3060 | 1630 | 1180 | 2390 | 284 | 1270 | 720 | |
| 3300 | 1710 | 1210 | 2340 | 291 | 1290 | 750 | |
| 3540 | 1750 | 1290 | 2450 | 298 | 1320 | 770 | |
| 3780 | 1790 | 1350 | 2510 | 304 | 1240 | 740 | |
| 4050 | 1830 | 1240 | 2560 | 318 | 1350 | 790 | |
| 4320 | 1870 | 1260 | 2620 | 325 | 1380 | 800 | |
| 4590 | 1910 | 1320 | 2670 | 332 | 1410 | 860 | |
| 4890 | 1950 | 1380 | 2730 | 340 | 1480 | 820 | |
| 5250 | 2000 | 1410 | 2800 | 311 | 1440 | 840 | |
| 5610 | 2040 | 1440 | 2860 | 347 | 1510 | 880 | |
| 6000 | 2090 | 1480 | 2930 | 355 | 1540 | 900 | |
| 6900 | 2140 | 1510 | 3000 | 364 | 1580 | 920 | |
| 7800 | 2190 | 1550 | 3070 | 372 | 1620 | 940 | |
| 6450 | 2240 | 1600 | 3140 | 380 | 1680 | 960 | |
| 7350 | 2280 | 1650 | 3190 | 388 | 1660 | 980 | |
| 8300 | 2330 | 1670 | 3260 | 396 | 1720 | 1000 | |
| 8700 | 2380 | 1610 | 3320 | 403 | 1750 | 1020 | |
| 9300 | 2420 | 1710 | 3390 | 411 | 1790 | 1040 | |
| 9900 | 2470 | 1740 | 3460 | 420 | 1820 | 1060 | |
| 10500 | 2520 | 1800 | 3530 | 428 | 1880 | 1090 | |
| 11700 | 2570 | 1800 | 3600 | 437 | 1880 | 1090 | |
| 12900 | 2650 | 1855 | 3650 | 450 | 1945 | 1130 | |
| 13500 | 2610 | 1855 | 3770 | 444 | 1945 | 1130 | |
| 14100 | 2690 | 1855 | 3840 | 457 | 1975 | 1170 | |
| 14700 | 2740 | 1855 | 3710 | 466 | 1975 | 1200 | |
| 11100 | 2780 | 1960 | 3890 | 473 | 2050 | 1170 | |
| 12300 | 2820 | 1990 | 3950 | 479 | 2080 | 1210 | |
| 15400 | 2860 | 2020 | 4000 | 486 | 2110 | 1230 | |
| 16100 | 2900 | 2050 | 4060 | 493 | 2140 | 1250 | |
| 16900 | 2950 | 2080 | 4130 | 500 | 2180 | 1270 | |
| 17800 | 3000 | 2120 | 4200 | 510 | 2210 | 1290 | |
| 18800 | 3060 | 2160 | 4280 | 520 | 2260 | 1320 | |
| 20000 | 3120 | 2200 | 4370 | 530 | 2300 | 1340 | |
| 21500 | 3200 | 2260 | 4480 | 540 | 2360 | 1380 | |
| 23000 | 3270 | 2310 | 4580 | 560 | 2410 | 1410 | |
| 24500 | 3340 | 2360 | 4680 | 570 | 2460 | 1440 | |
| 26000 | 3410 | 2410 | 4770 | 580 | 2520 | 1470 | |
| 27500 | 3470 | 2450 | 4860 | 590 | 2560 | 1490 | |
| 29000 | 3530 | 2490 | 4940 | 600 | 2610 | 1520 | |
| 31000 | 3610 | 2550 | 5050 | 610 | 2660 | 1550 | |
| 33000 | 3690 | 2610 | 5170 | 630 | 2720 | 1590 | |
| 35500 | 3780 | 2670 | 5290 | 640 | 2790 | 1630 | |
| 38500 | 3880 | 2740 | 5430 | 660 | 2860 | 1670 | |
| 42000 | 4000 | 2820 | 5600 | 680 | 2950 | 1720 | |
| 46000 | 4120 | 2910 | 5770 | 700 | 3040 | 1770 | |
Key Features：
- Holding power ratio is approximately 1:4 to 1:5.
- Simple, pinned construction with cast steel components.
- Stockless design for easy stowage.
- Commonly used on sailing vessels.
Applications：
- Sailing Vessels: A very common primary anchor for a wide range of sailboats.
- Small Motor Yachts: Provides reliable holding for smaller recreational powerboats.
- Traditional Boats: Used on various classic and traditionally designed vessels.
Installation & Maintenance：
Installation: Connect the anchor to your anchor chain using the shackle.
Maintenance: Regularly inspect the main pivot pin and its retaining mechanism. Check for wear or corrosion.
Custom Options Available：
We can supply these anchors in a variety of weights. Galvanized finishes are available.
