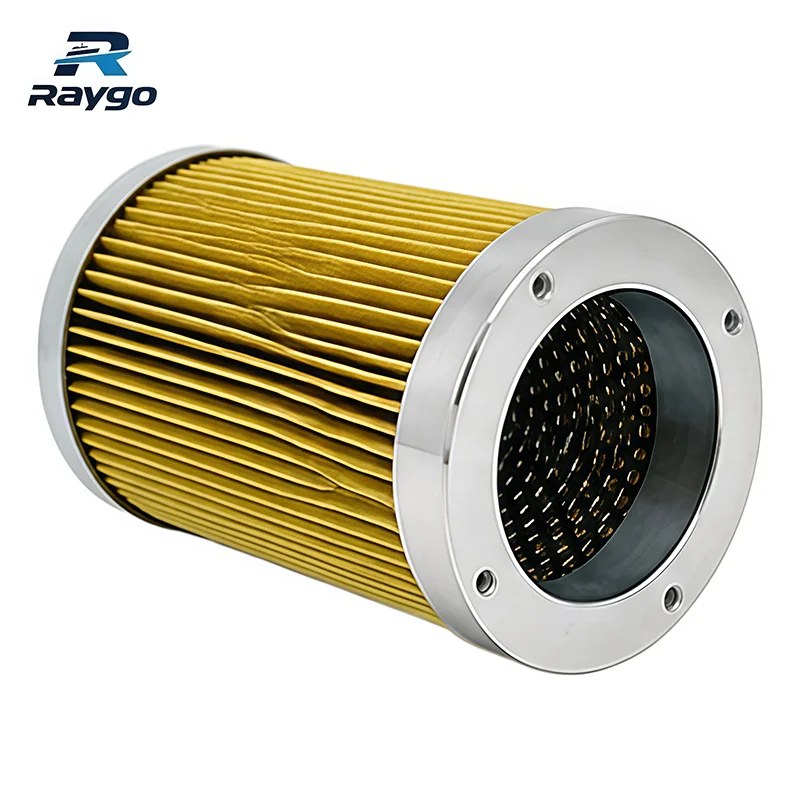

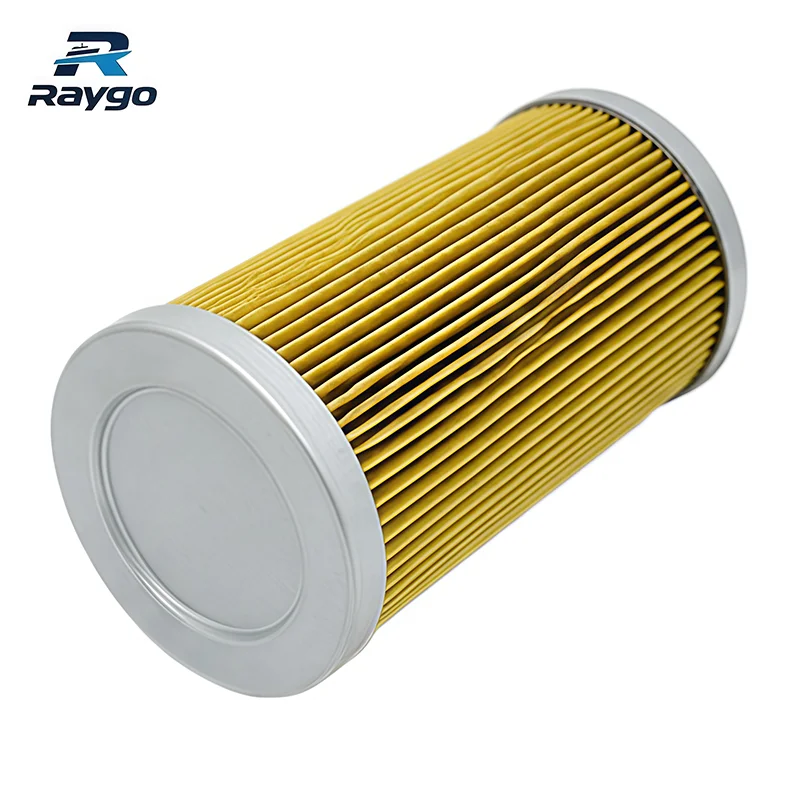

Marine Pleated Oil Filter Element for Fuel and Lube Oil Systems

A marine pleated oil filter element is a general oil filtration spare part for shipboard oil systems. It uses folded filter media to increase effective filtration surface. This structure is suitable for applications where the filter housing has limited space but the system still requires stable oil flow and reliable contaminant removal.
This filter is commonly used for fuel oil, diesel, lube oil or auxiliary oil filtration. It helps reduce contamination before oil reaches pumps, valves, bearings, gears, injectors or other key components.
The actual filter media can vary according to oil type and system requirement. Different materials provide different filtration accuracy, oil compatibility, pressure resistance and service life.

Technical Specifications：

The final specification of a marine swivel fairlead should be selected according to rope diameter, working load, rope type, deck layout and installation method. Raygo Marine can provide customized designs based on drawings or project requirements.

Key Features：

• Marine pleated oil filter elements are suitable for general oil filtration where larger filtration area and stable oil flow are required. The pleated media design helps improve dirt-holding capacity within limited space.
• This filter can help reduce particles, sludge and metal debris in oil systems. By improving oil cleanliness, it supports better protection for pumps, valves, bearings, gears and other components.
• Compared with basket type or wire mesh filters, pleated oil filters are often selected when the system requires more filtration area and finer filtration performance. Compared with hydraulic oil filters, general pleated oil filters should still be selected according to the specific oil system and pressure requirements.

Working Principle：

Oil enters the filter housing and flows through the pleated filter media. Particles, sludge and metal debris are captured by the filter layer. Cleaner oil then continues to the downstream oil system.
The pleated structure creates more filtration area in the same installation space. This helps the filter hold more contaminants and maintain oil flow for a longer period compared with some limited-area structures.
As the filter becomes loaded with contaminants, pressure drop increases. The filter should be replaced or handled when pressure difference reaches the recommended limit.

Product Structure and Material Features：

Marine pleated oil filter elements usually include pleated filter media, support layers, end caps and sealing components. The pleat depth, pleat spacing and support structure affect filtration area, dirt-holding capacity and flow resistance.
Filter media may be selected from fiber, metal or composite materials according to oil type and working condition. For marine systems, the filter should be suitable for oil temperature, pressure, vibration and installation conditions.
A proper sealing structure is also important. If sealing is poor, unfiltered oil may bypass the filter and reduce filtration performance.

Applications：

• Fuel Oil System: Removes particles and impurities from fuel oil.
• Lube Oil System: Filters metal debris and sludge from lubricating oil.
• Generator Lubrication System: Supports cleaner oil circulation.
• Auxiliary Oil System: Helps protect pumps, valves and moving parts.

Selection Guide：

When selecting a marine pleated oil filter element, customers should confirm the oil medium first. Fuel oil, diesel, lube oil and auxiliary oil may require different filter materials and filtration ratings.
The flow rate should meet the system oil circulation demand. If the filter capacity is too low, pressure drop may increase and oil supply may be affected. The working pressure and temperature should also match the actual system conditions.
For replacement, customers should check outer diameter, inner diameter, length, end cap structure, sealing method and original filter housing space.

Replacement and Compatibility：

Raygo Marine can help match marine pleated oil filter elements according to original part number, model, old filter photo, drawing, sample or dimensions.
Useful information includes filter size, oil medium, filtration rating, flow rate, pressure, temperature, end cap structure, sealing type and quantity. Photos of both ends and the filter body are helpful for replacement checking.

Maintenance Tips：

Pleated oil filter elements should be inspected or replaced according to equipment manuals and actual oil condition. If oil contamination is high, the filter may clog faster and pressure drop may rise quickly.
The filter should be replaced when it is clogged, damaged, deformed or when differential pressure exceeds the recommended range. After installation, sealing should be checked to prevent leakage or bypass.

FAQ ：

Q: What is the advantage of a pleated oil filter element?

A: The pleated structure provides larger filtration area and better dirt-holding capacity within limited installation space.

Q: What oil systems can it be used for?

A: It can be used in marine fuel oil, lube oil, generator oil and auxiliary oil systems when specifications are matched.

Q: What should be checked before replacement?

A: Filter size, oil medium, filtration rating, flow rate, pressure, temperature and sealing type should be checked.
